The Ultimate MIG Industrial Welding Solution.

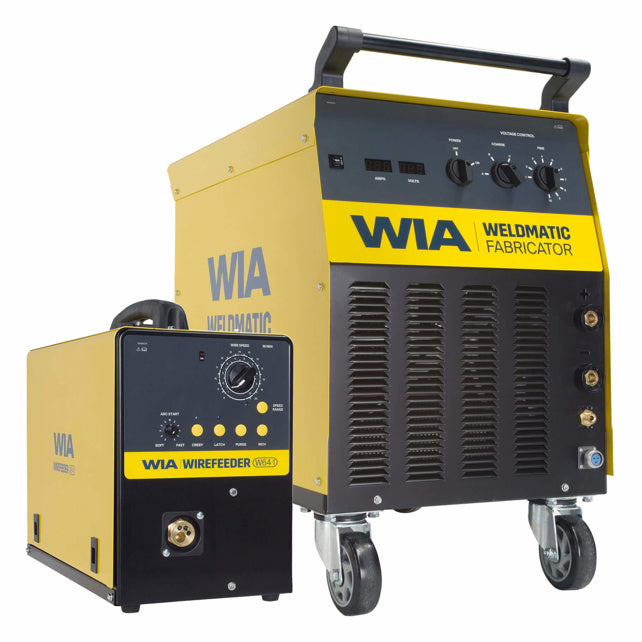

The Weldmatic Fabricator is the most powerful WIA MIG welding machine
for medium and heavy industrial fabrication applications. Packaged with a
separate wire feeder it provides extra flexibility for a workshop set up and
enables custom set up to suit the job including arc start, wire speed, burn
back, spot time, creep mode, pre and post gas plus more!
Built with quality components for tough Australian conditions it comes
with 3 years warranty, offering professional welders reliability and
performance that’s second to none.
Features
— 400 A three phase MIG welder
— 400 A at 34 V 45% Duty Cycle
— Digital Meters – Easy to read and easy to adjust
parameters
— Fan-on-Demand™ Cooling Fan – Reduces noise,
energy use and contaminates
— Built-In Thermal Protection – Prevents the machine
from operating beyond its safe thermal zone
— Arc Start - Modifies arc starting condition, wire
accelerates at different speed depending on
application
— Four geared wire drive - Provides a consistent,
smooth, and strong drive for a variety of wires
— Burn Back – Controls how far the wire burns back to
the tip on completion of the welding operation
— Spot Timer –Provides short weld times for repetitive
spot welds
— Creep Mode – Provides slow wire speed until weld
starts - ideal for aluminium starts
— Suitable wires - Gas-shielded and gasless
flux-cored wires
— Spool capacity - Takes 5kg and 15kg spools
— IP21S rated
— Generator compatible – 20 kVa Peak*
Best used with
| Product |
Part Number |
- Austfil T-11
- Self-Shielded
- Flux-Cored Wire
|
- AUST11085KG (0.8mm - 5kg spool)
- AUST11095KG (0.9mm – 5 kg Spool
- AUST11125kg (1.2mm – 5kg Spool)
|
- Austmig ES6
- Mild Steel Wire
|
- ES606M5KG (0.6mm – 5kg Spool)
- ES608M5KG (0.8mm – 5kg Spool)
- ES609M5KG (0.9mm – 5kg Spool)
|
- Austmig 5356
- Aluminium Wire
|
- M5356092KG (0.9mm – 2kg Spool)
- M5356102KG (1.0mm - 2kg Spool)
- M5356122KG (1.2mm - 2kg Spool)
|
- Austfil Excel Gas
- Shielded Flux Cored Wire
|
- AE71CM12 (1.2.mm – 15kg Spool)
- AE71CM16 (1.6.mm – 15kg Spool)
|
|
|
- SH300001 (Nero)
- SH300002 (Blue Knight)
|
Minimum Sell Quantity: 1 EACH
Order Quantity Multiple: 1 EACH
The images shown are for illustration purposes only and may not be an exact representation of the product.
