UNIMIG U14001K RAZOR CUT 40 Air Plasma Cutter

UNIMIG U14001K RAZOR CUT 40 Air Plasma Cutter
The RAZOR CUT 40 AIR is the perfect plasma cutter for the professional who wants a powerful plasma cutter with a built-in air compressor. Fitted with a 15 AMP plug, this machine is made for the workshop and worksite. The RAZOR CUT 40 AIR boasts some serious cutting power with 10mm clean-cut and 12mm severance on the built-in air compressor, and 16mm clean-cut and 20mm severance on an external compressor.

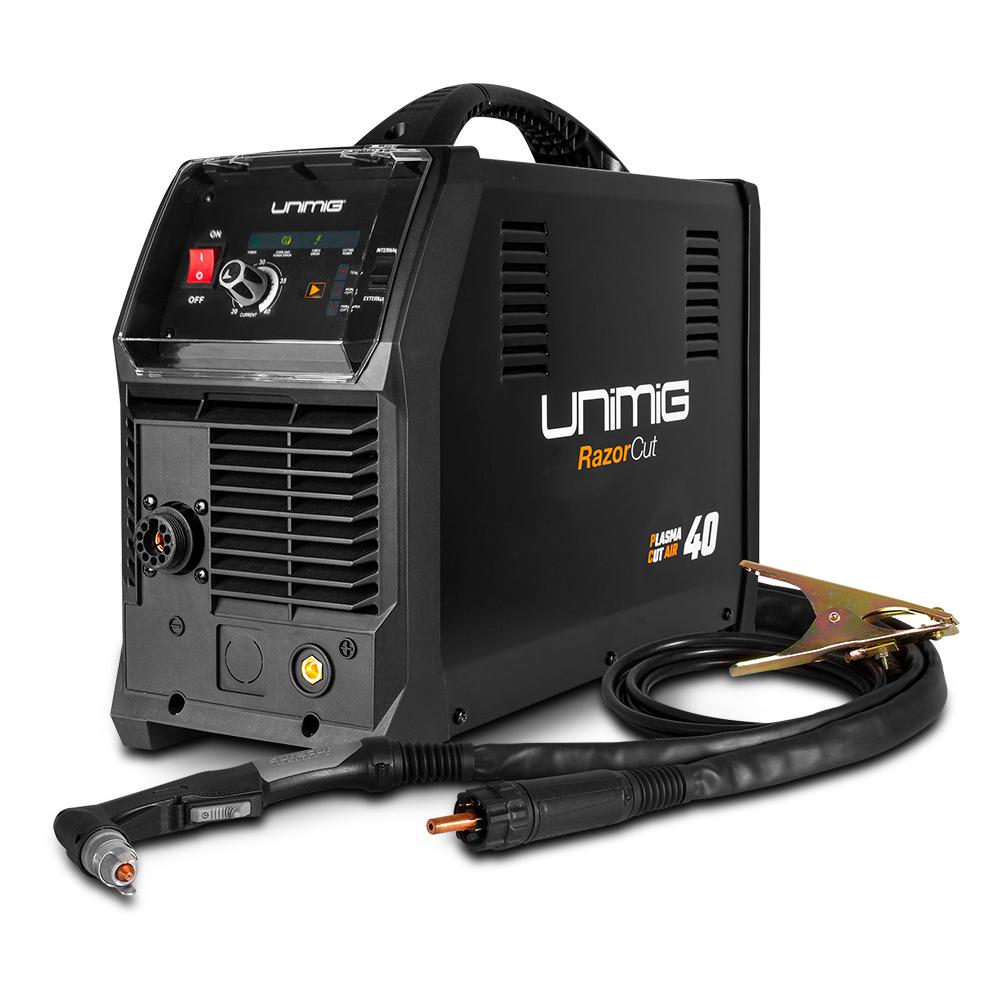

Includes:

1 x Razor Cut 40 Air Plasma Cutter
1 x 6m SC80 Plasma Torch
1 x 4m 300A Earth Clamp
1 x Air Regulator
Features:

Comes with a built-in air compressor, giving you more flexibility with a plasma cutter than ever before. Connect an external air compressor for even greater cutting power.
Perferated cutting mode cuts both solid material and perforated materials with ease
Pilot arc start lets you start the arc before contacting the work piece. This gives you better control of the torch, especially on materials with uneven or curved surfaces
Specifications:

Input Voltage: 240V (Single Phase)
Supply Plug: 15A
Rated Power Input: 7.2kVA
Rated Output: 96V
No-Load Voltage: 210V
Protection Class: IP21
Insulation Class: H
Dinse Connector: 10/25
Plasma Cut Range: 20-30A
Plasma Cut Duty Cycle (@ 40°C): 25% @ 40A, 60% @ 26A, 100% @ 20A
Standard: AS/NZ60974-1
Cutting Thickness: Mild Steel
Internal: 12mm
External: 16mm
Internal (Severence): 14mm
External (Severence): 18mm
Cutting Thickness: Aluminium
Internal: 6mm
External: 8mm
Internal (Severence): 8mm
External (Severence): 10mm
Cutting Thickness: Stainless Steel
Internal: 6mm
External: 8mm
Internal (Severence): 9mm
External (Severence): 10mm
Air Flow Draw Off: 120L/min
Air Flow Pressure: 75PSI (5.17Bar)
Dimensions (L x W x H): 610mm x 215mm x 420mm
Weight: 18kg

3 Year Limited Warranty By UNIMIG

Minimum Sell Quantity: 1 EACH
Order Quantity Multiple: 1 EACH

The images shown are for illustration purposes only and may not be an exact representation of the product.
