UNIMIG U11238 ENVY 4-in-1 Multi 250 AC/DC Pulse MIG/TIG/STICK Welder U11238

UNIMIG U11238 ENVY MULTI 250 AC/DC Welder

Take your welding to the next level with the UNIMIG ENVY MULTI 250 AC/DC – a powerhouse multi-process welder packed with advanced features, precision control, and exceptional versatility. Whether you're working with aluminium, stainless steel, or mild steel, this machine delivers professional-grade results across AC/DC TIG, MIG, Flux-Cored, and Stick (MMA) processes.

Get superior performance on your worksite or in your workshop, the ENVY MULTI 250 AC/DC is capable of every kind of welding and filled with the latest revolutionary technologies.

• First-of-its-kind, next-generation silicon carbide MOSFET technology
• Single and double pulse MIG programs & high-frequency AC & DC TIG
• MIG & TIG Smart-Set weld modes for complete synergic setups

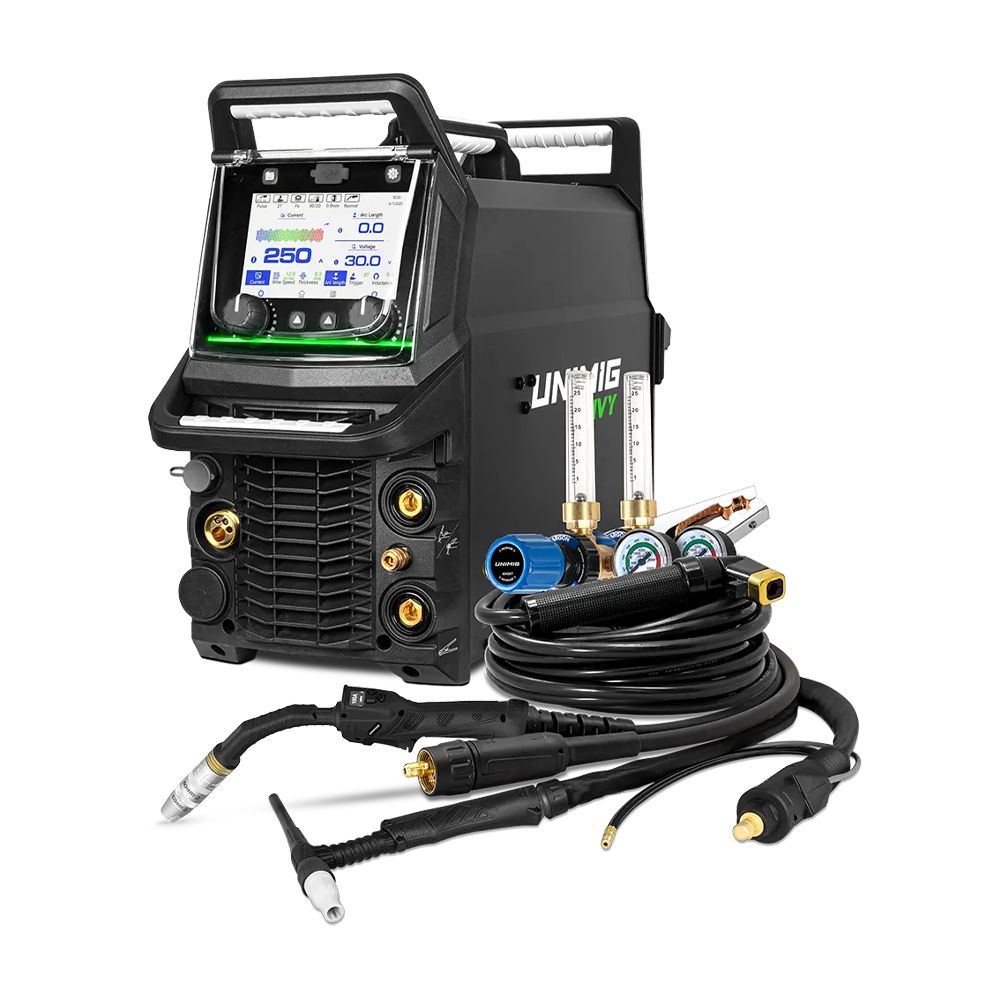

Includes:

• 1 x ENVY MULTI 250 AC/DC Welder
• 1 x 3m M350 Digital MIG Torch
• 1 x 4m T2 TIG Torch
• 1 x 4m Twist Lock Electrode Holder
• 1 x 4m 300 Amp Earth Clamp & Lead
• 2 x Dual Stage Argon Flowmeters
• 2 x 1.8m Quick-Connect Gas Hoses
• 1 x Operating Manual
• 4 x 0.8-0.9mm V Groove Roller
• 4 x 0.8-0.9mm F Groove Roller
• 4 x 1.0-1.2mm U Groove Roller

Features:

• Multi-Process Capability: AC/DC TIG, High-Frequency TIG, MIG, Flux-Cored, and MMA welding modes in one machine
• AC/DC TIG Welding: Weld aluminium and other non-ferrous metals with full control over frequency, balance, and waveforms
• Pulse TIG Function: Enhanced arc stability and heat control for ultra-precise TIG welding
• Synergic MIG Programs: Pre-loaded settings for quick setup and consistent welds—ideal for beginners and pros alike
• Spool Gun Ready: Weld aluminium easily with optional spool gun support
• Dual Voltage (Optional): Flexible use across a range of power supplies (confirm model specs)
• 2T/4T Trigger Modes & Job Memory: Customise control and save settings for repeatable results
• Large LCD Display: Easy-to-read digital interface with intuitive navigation and parameter control
• Water Cooler Compatible: Fully compatible with the UNIMIG U11243 Water Cooler and U11242 Trolley (sold separately)
• Comes in an environmentally friendly recyclable box
• Higher Pulse Frequency in AC & DC: With a pulse frequency as high as 999 pulses per second in both AC and DC TIG, you can get as many pulses as you need for any scenario

Suitable Materials:

• MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
• TIG: Mild Steel, Stainless Steel, Aluminium, Copper, Silicon Bronze, Titanium, Magnesium, Zinc Alloys
• MMA: Mild Steel, Stainless Steel, Cast Iron

Specifications:

• Technical Data

  • SKU: U11238
  • Primary Input Voltage: 240V Single Phase 50/60Hz
  • Supply Plug: 15A
  • Ieff (A): 15.0
  • Imax (A): 34.0
  • Rated Output: 20-250A
  • No Load Voltage (V): 92V
  • Protection Class: IP21S
  • Insulation Class: H
  • Minimum Generator (kVA): 12.0
  • Dinse Connector: 35/50
  • Standard: AS 60974.1
  • Welds: MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze | MMA: Mild Steel, Stainless Steel, Cast Iron | TIG: Mild Steel, Stainless Steel, Aluminium, Copper,
  • Silicon Bronze
• MIG Specifications

  • MIG Welding Current Range: 20-250A
  • MIG Duty Cycle @ 40°C: 20% @ 250A, 60% @ 144A, 100% @ 112A
  • MIG Wire Size Range: 0.6-1.2mm
  • MIG Wire Spool Size: 5kg (200mm) / 15kg (300mm)
  • MIG Welding Thickness Range: 1-12mm
  • Drive Roller Size: 30/22
• TIG Specifications

  • TIG Function Type: AC/DC HF TIG & AC/DC Pulse
  • TIG Welding Current Range: 3-250A
  • TIG Duty Cycle @ 40°C: 30% @ 250A, 60% @ 177A, 100% @ 137A
  • TIG Welding Thickness Range: 1-10mm
• MMA Specifications

  • STICK Welding Current Range: 10-230A
  • STICK Duty Cycle @ 40°C: 20% @ 230A, 60% @ 133A, 100% @ 103A
  • STICK Electrode Range: 2.5-4.0mm
  • STICK Welding Thickness Range: 2-12mm
• Dimensions (L x W x H): 810mm x 280mm x 520mm
• Weight (kg): 34.5kg

Warranty:

• 5 Year Warranty as Covered by Unimig

Minimum Sell Quantity: 1 EACH
Order Quantity Multiple: 1 EACH

The images shown are for illustration purposes only and may not be an exact representation of the product.
