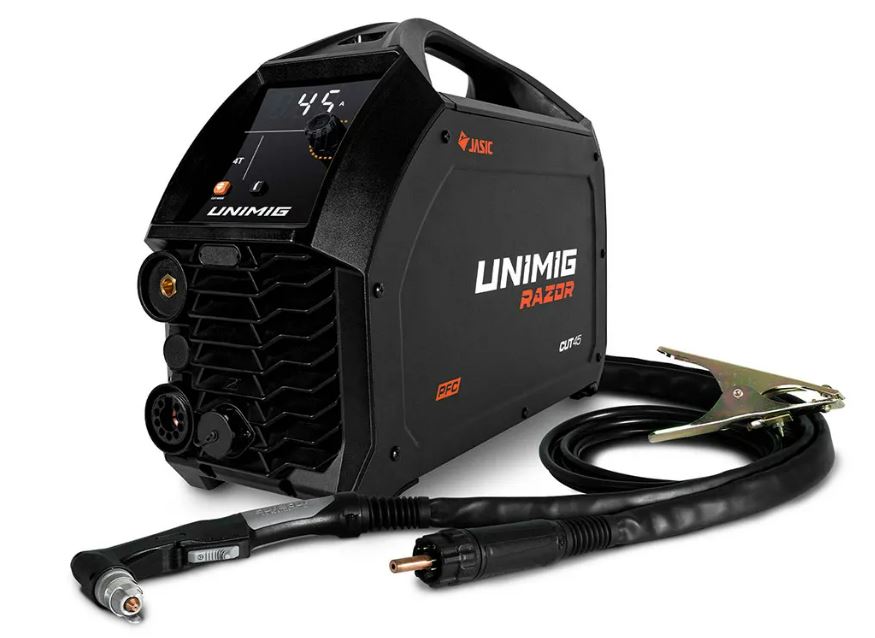

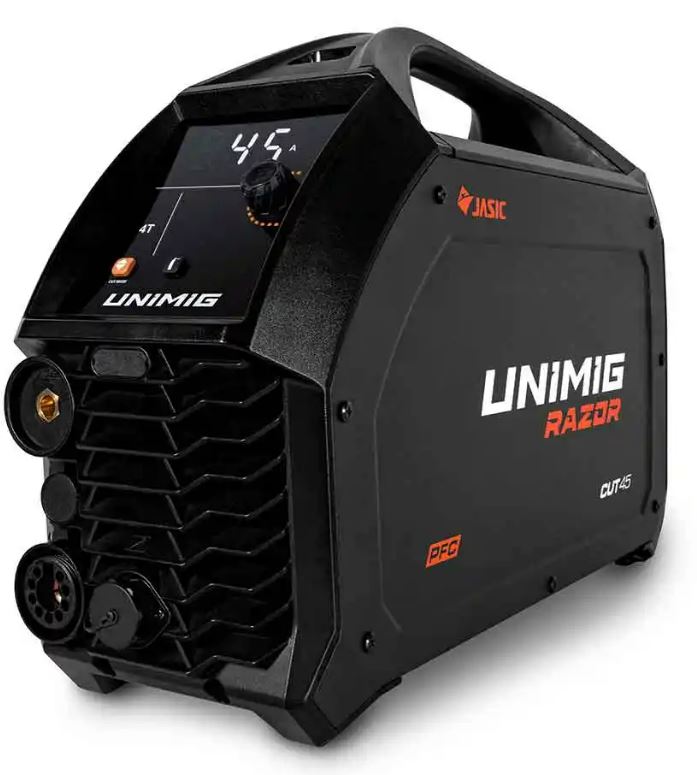

UNIMIG Razor Cut 45 Plasma Cutter U14006K

UNIMIG U14006K RAZOR CUT 45 Plasma Cutter
The UNIMIG Razor Cut 45 Plasma Cutter is super light and portable at only 10kg, so it is ready to go anywhere you need it. It features a HD Backlit Interface which is bright and easy to read in any environment. Also has a smart fan which diminishes noise, saves power, helps reduce energy costs, & minimises the number of contaminants being pulled through the machine.

Includes:

6m SC80 Plasma Torch
4m 300 AMP Earth Clamp
Air Regulator
Operating Manual
Features:

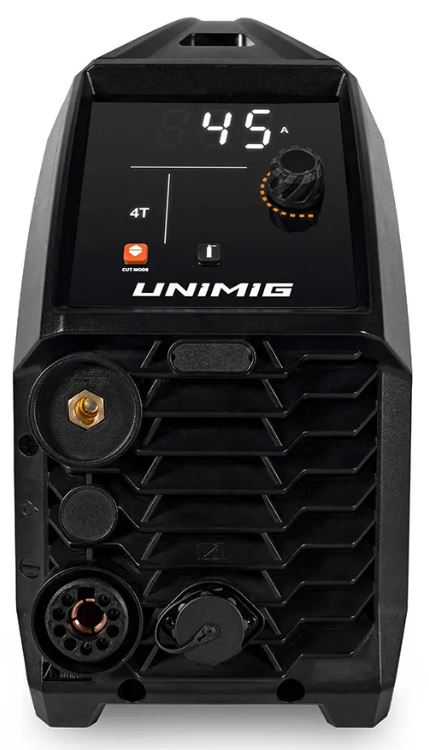

HD Backlit Interface - This next generation interface panel is bright & easy to read in any environment.
Power Factor Correction - PFC gives you maximum electrical efficiency. It automatically compensates for any voltage fluctuation, & PFC is also designed to be generator friendly.
CNC Connectivity - Easy access front panel port for & adjustable feedback ratio for CNC connectivity.
Perforated Cut Mode - Now you can cut perforated metal without having to restart the arc between gaps. Simply shift into perforated cutting mode & slice through perforated metal with ease.
Pilot Arc Start - Pilot Arc Start lets you start the arc before contacting the work piece. This gives you better control of the torch, especially on materials with uneven or curved surfaces.
2T/4T Trigger Modes - Designed for user preference & comfort, adjustable trigger modes allow you to either hold the trigger down throughout the cut, or use the trigger as a on/off switch by pulling to start & pulling to stop.
Smart Fan - Smart Fan diminishes noise, saves power, helps reduce energy costs, & minimises the number of contaminants being pulled through the machine.
Lightweight & Portable - Weighing just 10kg, the RAZOR CUT 45 is ready to go anywhere you need it.
Specifications:

Primary Input Voltage: 240V Single Phase
Supply Plug: 15A
Rated Input Current: 23A
No Load Voltage: 300V
leff: 15A
Air Flow Draw Off: 189 L/min
Air Flow Pressure (Bar): 5.17 (75psi) (0.5 MPa)
Current Range: 20-45A
Machine Duty Cycle: 25% @ 45A, 60% @ 30A, 100% @ 20A
Protection Class: IP23S
Insulation Class: H
Dinse Connector: 10/25
Standard: AS/NZ60974-1
Plasma Arc Start: Pilot Arc
CNC Connection: Yes
Thermal Overload Protection: Over Temperature Warning
Plasma Cut Thickness Rating:
Mild Steel Clean Cut: 6mm
Aluminium Clean Cut: 5mm
Stainless Steel Cut: 5mm
Dimensions (L x W x H): 546mm x 169mm x 341mm
Weight: 10kg
Warranty:

3 Year Limited Warranty By UNIMIG
