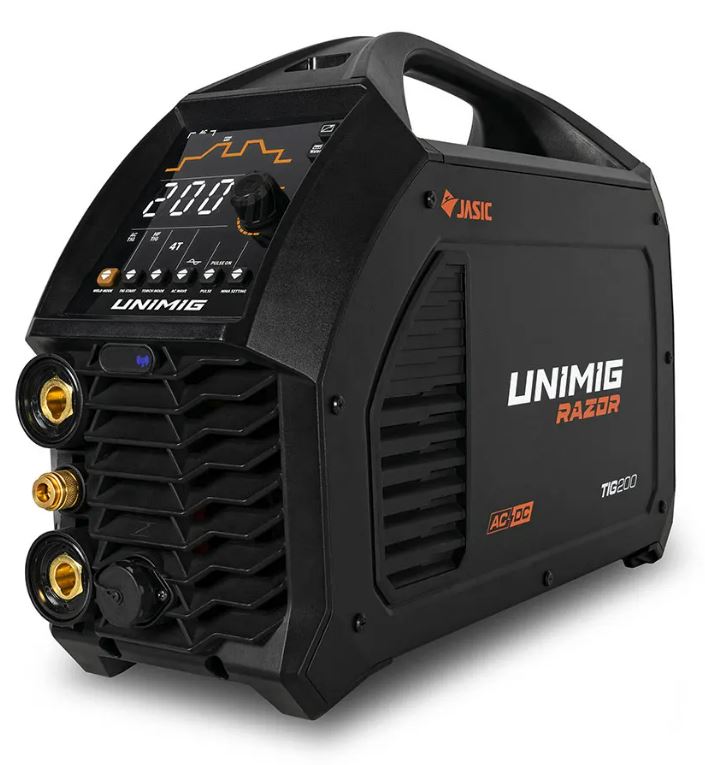

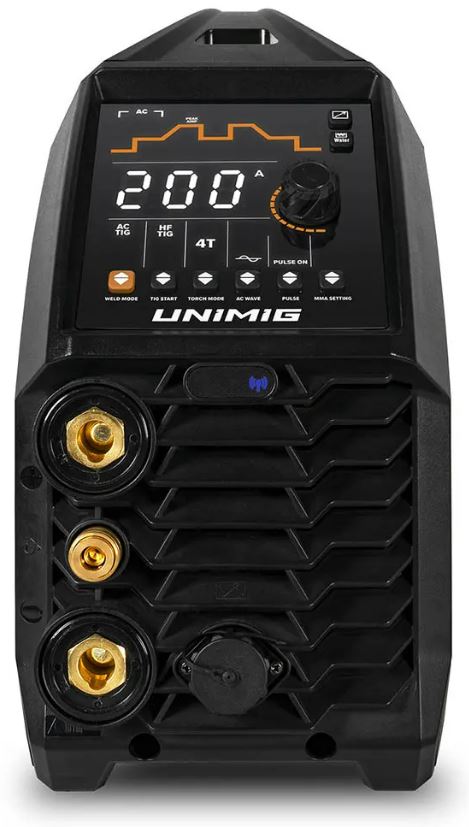

UNIMIG Razor 200 AC/DC Welder U12002K

UNIMIG U12002K 240V 9.0kVa RAZOR TIG 200 AC/DC Welder
Get incredible results from start to finish with this professional-grade TIG welder.

Suitable Material:

TIG: Aluminium, Magnesium, Zinc Alloys, Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium
MMA: Mild Steel, Stainless Steel, Cast Iron

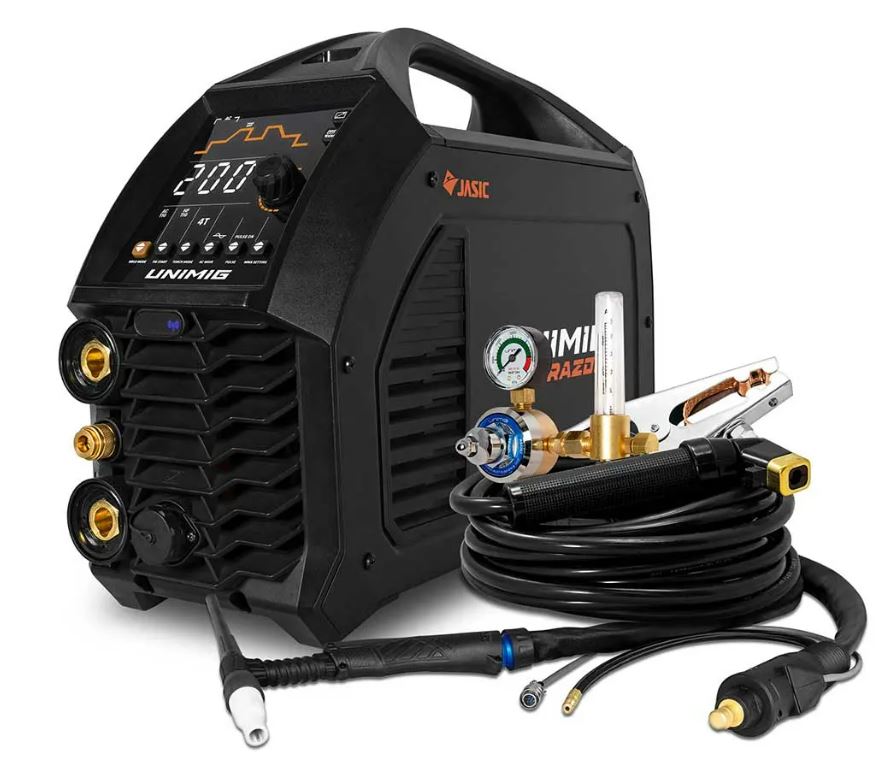

Package Includes:
8m T2 TIG Torch
4m Twist Lock Electrode Holder
4m 300 Amp Earth Clamp & Lead
Argon Flowmeter Regulator
1.8m Gas Hose with fittings
Operating Manual
Features:

Effortlessly weld any metal with the high-frequency AC/DC TIG
The ultimate combination of AC and DC available with Mixed Arc settings
Switch your AC welds to suit your needs with the choice of three waveforms
VRD: Yes
Foot Control Connection: Yes
HD Backlit Interface: This next generation interface panel is bright and easy to read in any environment
Power Factor Correction (PFC): PFC gives you maximum electrical efficiency. It automatically compensates for any voltage fluctuation, and PFC is also designed to be generator friendly.
10A Plug: A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere
AC/DC: Weld every kind of metal. With the ability to run on an Alternating Current, you’re able to weld aluminium as effortlessly as mild and stainless steels.
High-Frequency TIG: Maximise your results from start to finish. A high-frequency torch can start an arc without contacting the workpiece, reducing the risk of contaminating the tungsten or the weld. It also means you get access to the entire TIG weld cycle, including pre- and post-gas and up and down slope parameters.
Multiple AC Waveforms: Completely customise your aluminium welds. Switch between Sine, Square, and Triangle waves to change the arc characteristics, bead profile, and penetration to suit your weld
Mixed AC/DC: Experience the best of both worlds. Mixed AC/DC combines the efficiency of AC and the penetration of DC- TIG in one weld. With it, you get faster welding speeds, better penetration, a faster weld puddle on cold workpieces, and you can weld thicker materials
Pulse TIG: Minimise the heat input without compromising on any of the penetration. Alternating between a peak and base current reduces the amount of heat input and focuses the arc, perfect for sheet metals and out-of-position welding
Foot Control Ready: The perfect accessory, easily adjust your amperage to suit every weld as you go without disrupting your torch movement
Smart Fan: Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine
Advanced MMA Features: The RAZOR TIG 200 AC/DC features adjustable Arc Force and Hot Start functionality. These features are designed for improving weld quality and ease of use.
Specifications:

Primary Input Voltage: 240V Single Phase
Supply Plug: 10 Amp
Leff (A): 9.8
Rated Output: 5-200A
No Load Voltage: 65V
Protection Class: IP23S
Insulation Class: H
Minimum Generator: 9.0kVa
Dinse Connector: 35/50
Standard: AS/NZ60974-1
TIG:
TIG Function Type: AC/DC HF TIG & AC/DC Pulse
TIG Welding Current Range: 5-200A
TIG Duty Cycle @40°C: 20% @ 200A, 60% @ 115A, 100% @ 90A
TIG Welding Thickness Range: 1-8mm
STICK:
STICK Welding Current Range: 20-160A
STICK Duty Cycle @40°C:
15% @ 160A
60% @ 80A
100% @ 62A
STICK Electrode Range: 2.5-4.0mm
STICK Welding Thickness Range: 2-10mm
Dimensions: 500mm x 170mm x 340mm
Weight: 11.7kg
Warranty:

5-Year Warranty Covered by Unimig

Minimum Sell Quantity: 1 EACH
Order Quantity Multiple: 1 EACH

The images shown are for illustration purposes only and may not be an exact representation of the product.
