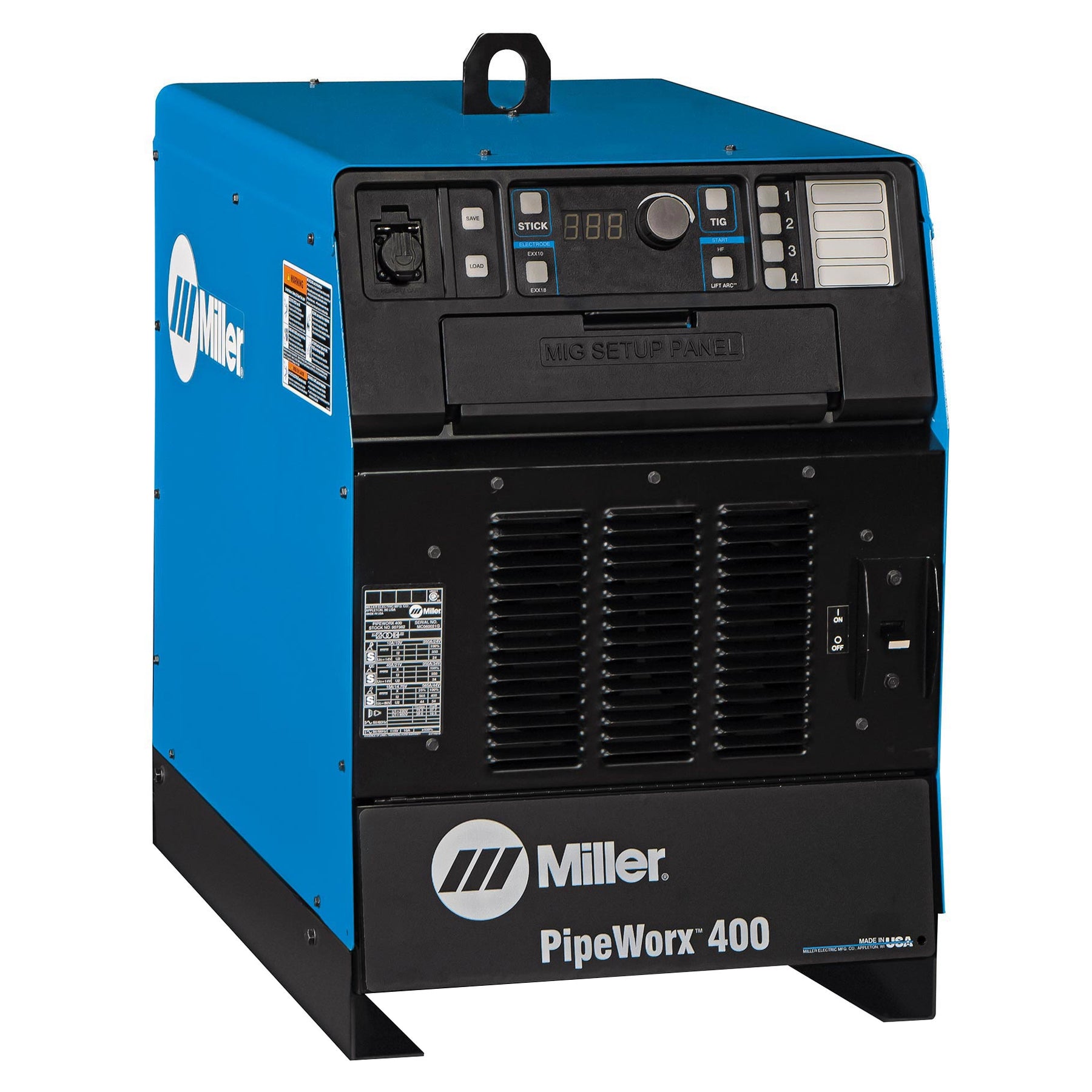

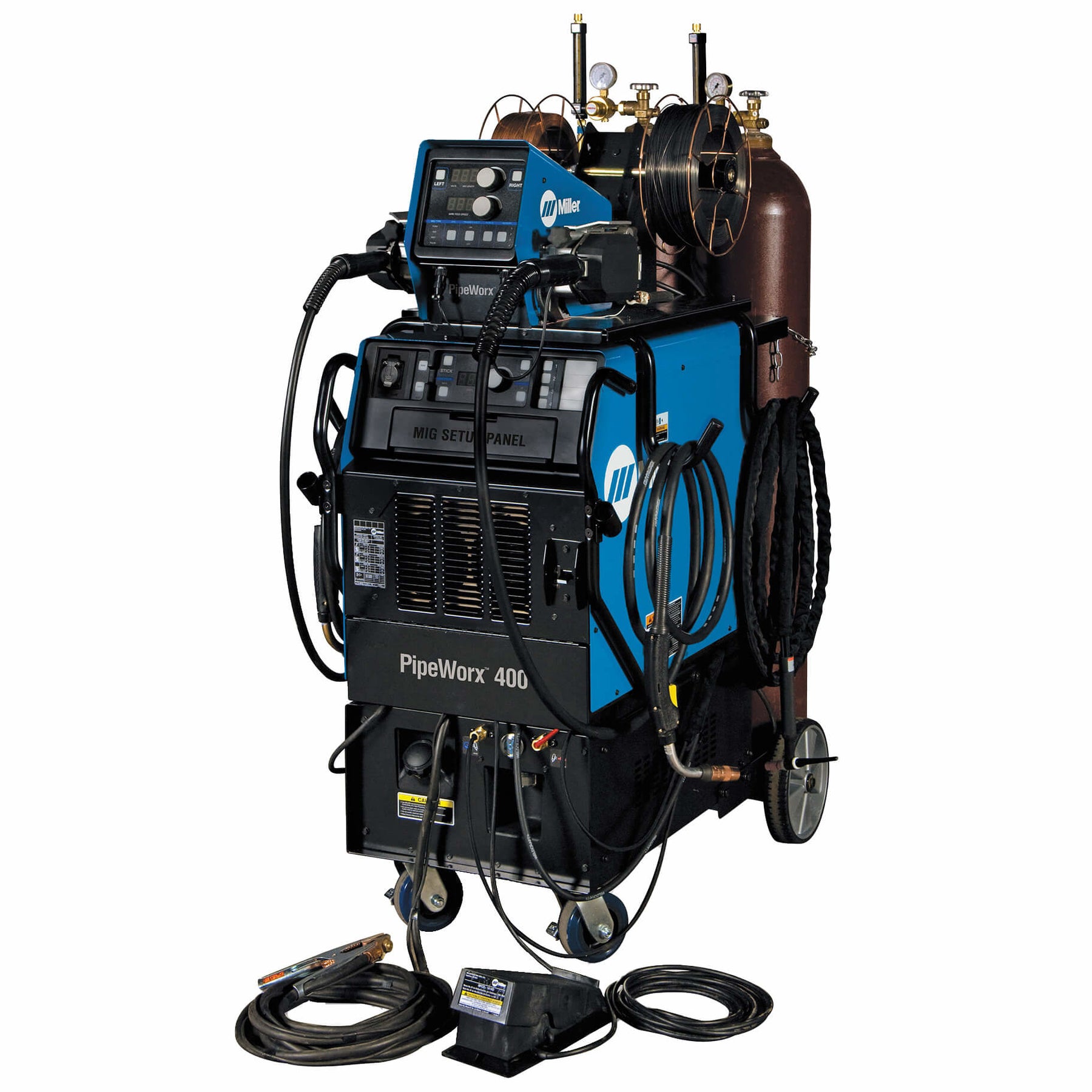

Miller PipeWorx 400 Multi-process Welder MR907534

Only 0 items in stock!

Designed for Pipe Fabrication Shops

Simplified and optimised for pipe fabrication shop welding, the PipeWorx systems streamlined set-up with one touch welding, quick process changeover, and Pulsed and Modified Short-Arc MIG processes, makes training and turn-around times faster than ever before. Capable of MIG, Stick and TIG welding.

Processes: Stick, Pulsed MIG, TIG, MIG RMD, Flux Cored, DC TIG

Spec Sheet

Product Range

Specifications


Rated Output

CC Stick: 350 A at 36 VDC, 100% Duty Cycle
CC: DC TIG: 350 A at 24 VDC, 100% Duty Cycle
CV: MIG/Flux Cored: 400 A at 34 VDC, 100% Duty Cycle

Amperage Voltage Range

CC Stick: 40 - 350 A
CC: DC TIG: 10 - 350 A
CV: MIG/Flux Cored: 10 - 44 V

Input at Rated Load Output 50/60Hz (400 V 3P)

CC Stick: 25.5
CC: DC TIG: 18.1
CV: MIG/Flux Cored: 25.7

kVA (400 V)

CC Stick: 17.8
CC: DC TIG: 12.5
CV: MIG/Flux Cored: 18.0

kW (400 V)

CC Stick: 16.5
CC: DC TIG:9.8
CV: MIG/Flux Cored: 15.6

Dimensions (mm) (Power Source Only)

H: 711
W: 495
D: 806

Weight (Power Source Only)

102kg

Minimum Sell Quantity: 1 EACH
Order Quantity Multiple: 1 EACH

The images shown are for illustration purposes only and may not be an exact representation of the product.
