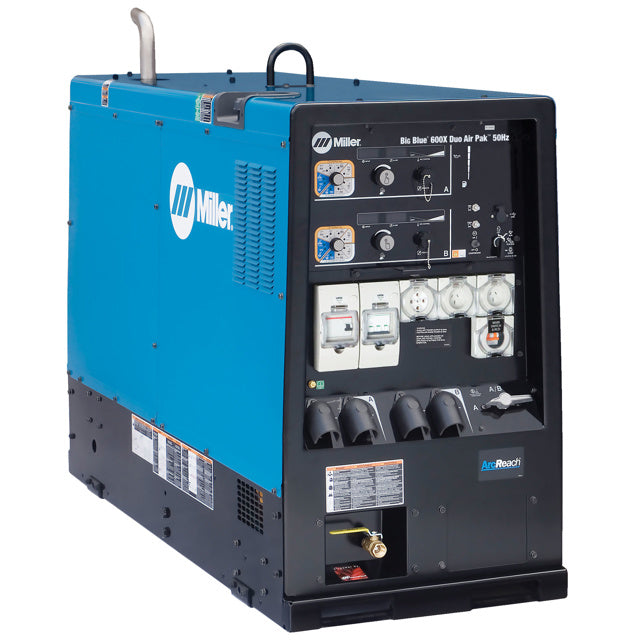

Big Blue 600X Duo Air Pak 50Hz ArcReach
50Hz Engine Drive Welder
Offering the highest most powerful welding output at 50Hz, Miller’s Big Blue® 600X Duo Air Pak™ 50Hz delivers up to 600 Amps of weld power, 18,000 Watts of continuous generator power, 45 CFM of air output and true heavy gouging capabilities for the most demanding jobs.
Plus, you’ll have the option to unlock heating capabilities when you pair the Big Blue® 600X Duo Air Pak™ with an ArcReach® heater.
Whether you work in the field or on site, the Big Blue® 600X is a true all-in-one solution.
Processes: Stick (SMAW), MIG (GMAW), Flux-Cored (FCAW), DC TIG (GTAW), Pulsed MIG (GMAW-P), RMD, Submerged Arc (SAW), Stud Welding, Air Carbon Arc (CAC-A) Cutting and Gouging
GAME-CHANGING TECHNOLOGIES CAN STOP YOU FROM WASTING HOURS EVERY DAY.
ArcReach welding technology minimises the non-value added time spent walking to and from the power source and maximises arc-on time, weld quality and job site safety
More Power
600 Amps of weld power and 18,000 watts of continuous generator power.
Multi-Arc Welding
One Dependable engine - two indpendent arcs with up to 300 amps each. Or plug in an additional inverter for a true multi operator work platform! Example: One additional XMT multi-process machines equals 3 operators, up to 200 Amps each. Premium quality arcs allow operators to work independently with no arc interaction. Multi operator welding has never been easier or more versatile.
Ingersoll Rand
- Ultra reliable industrial rotary screw compressor.
- 30,000 hr life expectancy.
- Independent on/off control for applications not requiring compressed air allows greater fuel savings and longer compressor service intervals.
Auto Remote Sense™
Standard 14-pin receptacle. For simple connection of remote controls and wire feeders.
HD Powder Coat
With Zinc-rich primer protects sheet metal from rust and corrosion.
Increased Efficiency
- More arcs and better fuel economy equal increased profits for your business
- Estimated savings are 34% with a dual-operator unit versus two single operator units
Digital Meters
SunVision technology enables welding parameters to be viewed with greater clarity than analogue meters at virtually any angle. Meters can be seen clearly even in direct sunlight.
Industrial USB port
Quickly upload the latest software and download machine log files to retrieve in-depth information such as diagnostic and machine statistics.
Auxiliary Power
- 1 x 415-380V 32Amp socket
- 2 x 240V 15 Amp sockets
- RCD.
Arc Control
Beneficial when welding with stick and solid wires for easier fine tuning of tough-to-weld materials and out-of-position applications.
Simple Paralleling Switch
| Model Options |
Part NO. |
|
Standard Machine Package - Dual VRD |
MR907763001-1 |
|
Basic Upgrade Package - Dual VRD, Emergency Stop, Double Pole Battery Isolator & Lockout Device
|
MR907763001-2 |
|
Full Upgrade Package - Dual VRD, Roll Frame & Spill Tray Assembly, Emergency Stop, Double Pole Battery Isolator & Lockout Device
|
MR907763001-3 |
3 YEAR WARRANTY
Welder/generator is warranted by Miller for 3 years, parts and labor. Engine is warranted separately by engine manufacturer.
Minimum Sell Quantity: 1 EACH
Order Quantity Multiple: 1 EACH
The images shown are for illustration purposes only and may not be an exact representation of the product.
