• Lower operating costs with gas and time savings
• Reduced risk of weld rework
• Improved weld quality
• Increased productivity
• Safer working environment

Reduce Inert Gas Consumption & Eliminate Reworks

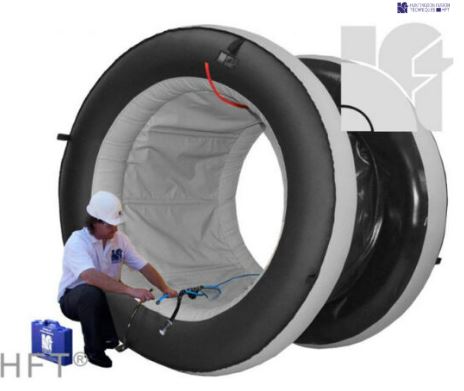

The Huntingdon Fusion Techniques Argweld® QuickPurge® Inflatable Tube, Pipe & Pipeline Purging System is the most efficient way to purge pipes before welding. It dramatically reduces inert gas consumption and eliminates the risk of weld failures due to oxidation.

Here’s how QuickPurge® saves you time and money:

• Reduces inert gas consumption by up to 70% compared to traditional purging methods
• Typical purge times are less than 3 minutes for a 12″ diameter joint
• Eliminates the need for filling entire pipe systems with argon

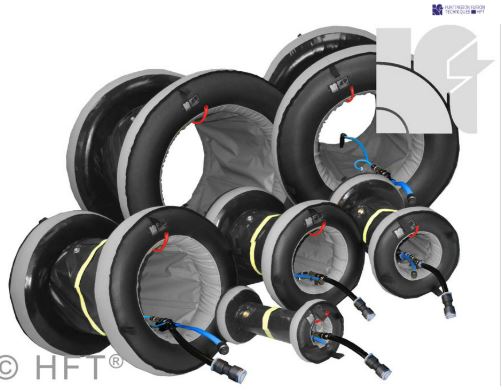

• Perfect for purging weld joints from 6 to 88 inches (152 to 2,235 mm)
• Ideal for use in refineries, mining operations, power stations, and more

Features

• IntaCal® technology eliminates the need for presetting valves and reduces the risk of over inflation
• RootGlo® positioning strip for quick and accurate positioning
• PurgeGate® prevents the inflatable dams from bursting due to excess pressure or flow
• Leak-tight quick fit coupling for purge/inflation hose
• Manufactured from heat-resistant material
• Lightweight and easy to use
• Special attention paid to material selection to minimise outgassing
• Unique central sleeve design reduces purge volumes
• No metal parts in proximity of the weld to ensure uninterrupted T examination
• Friction-free coatings for easy movement through pipes

Specifications

Sizes Available: 6 to 88 inches (152 to 2,235 mm).
Material: Low vapour pressure, temperature-resistant, and durable.
Operating Temperature: Maximum 80ºC (176ºF).
Inflation Mechanism: IntaCal® gas release system and PurgeGate® technology.
Alignment Aid: RootGlo® Centre Alignment Band for accurate positioning.

FAQs

1. How can Argweld® QuickPurge® help me?

Dramatically reduced welding times achieved. Phenomenal savings in argon. For example, a 36″ (900 mm) pipe joint might take from 4 to 8 hours to prepare and purge properly when using homemade devices such as discs made from cardboard, foam or rubber.

With Argweld® QuickPurge®, it takes as little as 10 minutes which includes placing the system into position, inflating the dams and purging.

2. What range of sizes is available?

6 to 88″ (152 to 2,235 mm)

3. What is the overall length?

Lengths will vary according to the diameter. The space between the dams is kept very short to minimise inert gas use consistent with the need to provide adequate gas coverage.

4. Can Argweld® QuickPurge® Systems be used for ‘return bends’?

It is necessary to tell HFT® at the time of order, that the QuickPurge® System is required for return bends. We will then manufacture longer collars to provide the necessary space to prevent the dams from being too close to the weld.

5. Are Argweld® QuickPurge® Systems re-usable?

Yes, QuickPurge® II pays for itself in a few welds. QuickPurge® is rugged and can be used for multiple welds.

6. What gases can I use with Argweld® QuickPurge® Systems?

Argon (Europe) and helium (N America) are the most common gases but any gas or gas mix can be used. Argon/hydrogen mixes and nitrogen have been used successfully.

7. What are Argweld® QuickPurge® Systems made from?

Predominantly low vapour pressure, flexible, durable, heat resistant materials selected for longevity.

8. How cost-effective are Argweld® QuickPurge® Systems?

Ask for our return on investment sheet. The savings using QuickPurge® are really stunning.

9. Are Argweld® QuickPurge® Systems resistant to heat?

Yes, QuickPurge® is resistant to the heat of all typical arc welding processes.

Special heat-protected purge systems called Argweld® HotPurge® are available to accommodate pre-weld and post-weld heat treated joints.

Heat Protecting Band accessories are available for Keyhole Tig or Keyhole Plasma welding. Or for any other applications where the material under the weld becomes too hot.

10. How do I measure the residual oxygen content?

Use a dedicated “PurgEye® Weld Purge Monitor®“.

11. How do I position the product in the pipeline?

QuickPurge® Systems are manufactured with high strength pull loops that allow the fixing of pull cords. RootGlo® is a glow sleeve which can be seen readily through the root gap when making open root welds. Exposure to 10 minutes of light provides illumination inside the pipe for up to 12 hours.

12. How long will Argweld® QuickPurge® Systems remain inflated?

Continuous purging will ensure effective sealing and this allows time for post-weld cooling and x-ray or ultrasonic inspection. Deflation is instant once the argon feed hose has been disconnected.
