FRONIUS ARTIS 210 DC PACKAGE 4MT TIG TORCH & EARTH 4.075.272.880
Gas Pre-Flow Time/Gas Post-Flow Automatic and Manual
The welding system that thinks with you.
Depending on the set welding current, the
Artis automatically calculates the duration
of the optimal gas post-flow time. This
improves the gas shield of the weld seam
end and tungsten electrode.
Trigger Mode OFF: Automatic Shutdown
Once the welding process is complete,
the welding current switches off
automatically after a specific change
in the arc length.
TAC Function for Time Savings of up to 50% When Tacking Materials
Pulse currents are used to make the
weld pool oscillate. This makes it easier
for you to tack components together
and reduces the tacking time. There
are little to no annealing colours on the
tacking points.
PTD—Pulse/TAC Display
Function Curve
This allows you to add two additional
welding parameters, “pulse” and “TAC”,
to the function curve on the control panel.
TIG Pulse Function: Welding Even with Thin Sheet Thicknesses
Pulse welding is used primarily for welding
in tight spaces or for welding particularly
thin materials. The setting range for pulsing
is 1 Hz to 990 Hz.
Touch High Frequency Ignition
When limited component accessibility
requires the use of torches without a
trigger, HF touch ignition is used.
The machine detects contact with the
workpiece and, after a defined period
of time, ignites the arc precisely at the
desired point.
TIG Welding Torch with Different Operating Options
We offer TIG welding torches with
standard, Up/Down function, long
trigger or potentiometer, depending
on your requirements.
Spot and Stitch Welding: Recurring Welded Joints
The spot welding mode allows you to apply
welding spots at even intervals. With the
freely adjustable stitch pause time, you can
also continue this as stitch welding.

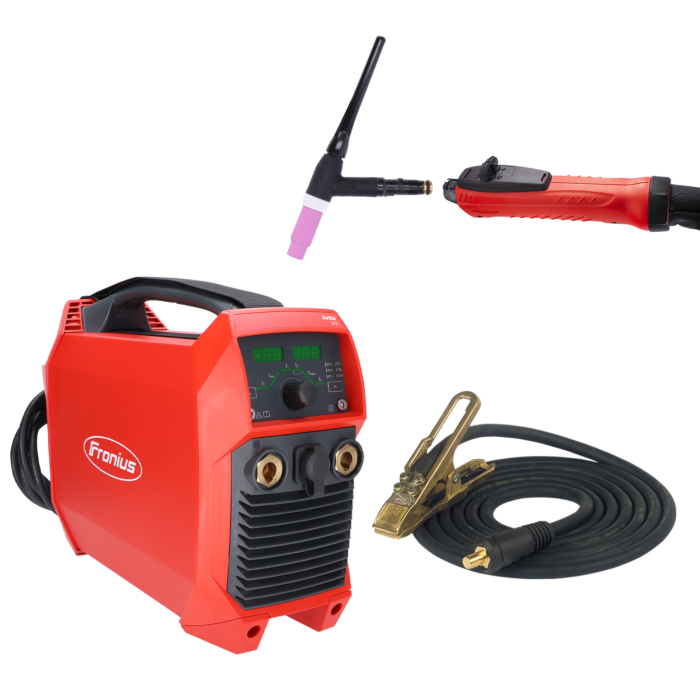

WHATS INCLUDED : Fronius Artis 210 DC

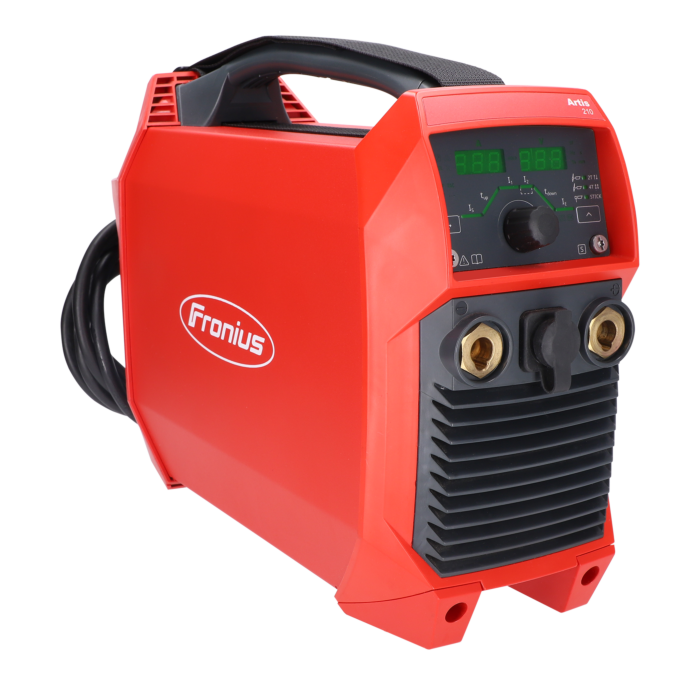

4.075.272 Artis 210 G/F DC Inverter
43.0004.0479 Earth cable 25mm² x4m & clamp

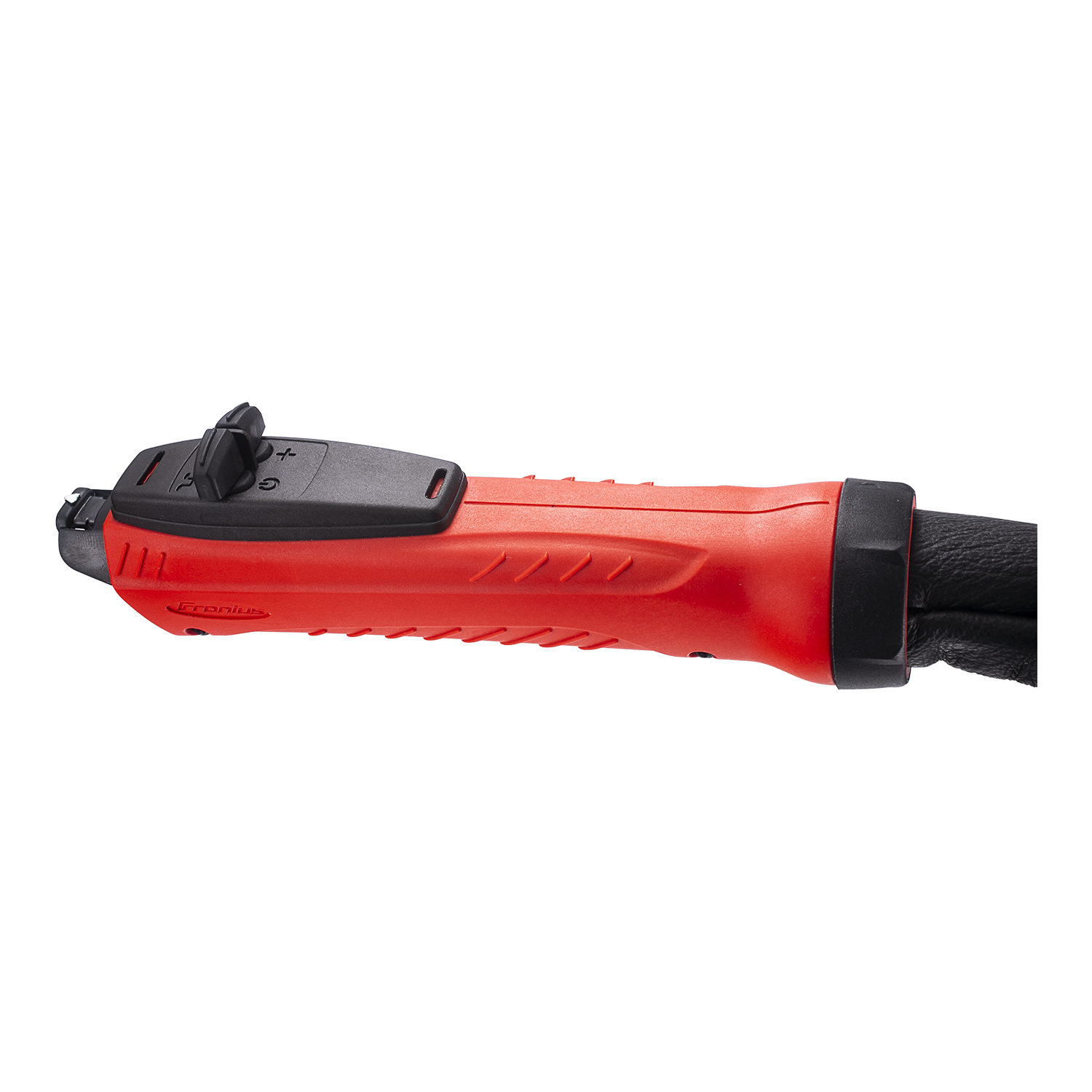

4.051.374 Tig torch hose pack THP 180 G SH ML/F/UD/Le/4m

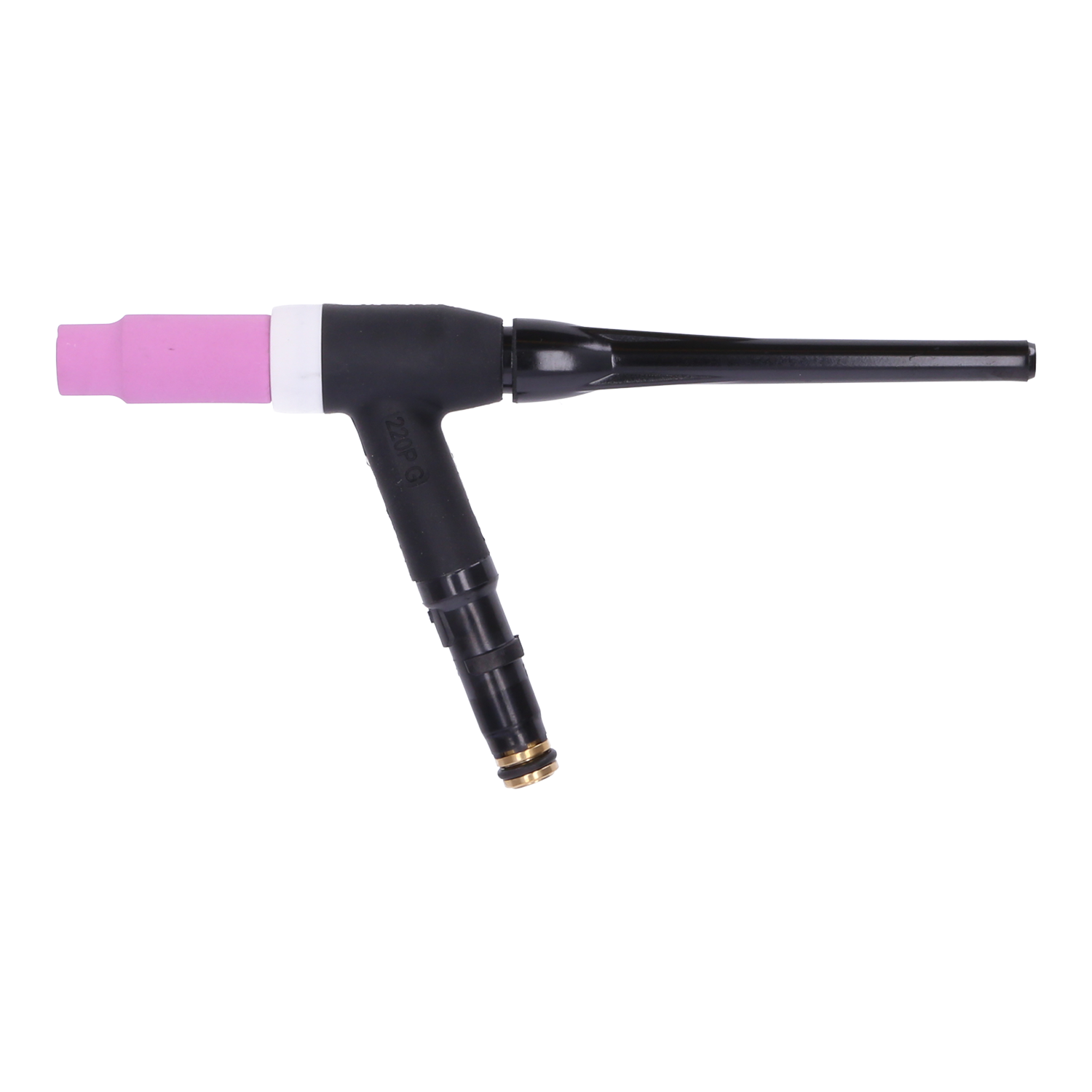

44.0350.4409 Tig torch body TTB 220P G ML/70°/L65
Minimum Sell Quantity: 1 EACH
Order Quantity Multiple: 1 EACH
The images shown are for illustration purposes only and may not be an exact representation of the product.
