Cigweld (XF210) Blue Venom AC/DC TIG Plant Welder with PFC W1300210

Cigweld W1300210 (XF210) Blue Venom AC/DC TIG Plant Welder with PFC

The BlueVenom XF210 AC/DC is a high-performance 210A TIG welding inverter that has been built to help you achieve the best quality showcase welds for your job. Start your next Aluminium project with ease thanks to the in-built Synergic with Plate Thickness settings that have been fine tuned so you can start stacking dimes right out of the box –with an impressive Duty Cycle of 210A @ 40%! Let's not forget it has High Frequency Start! Make yourself comfortable, position the torch at the weldand simply press the button on the TIG torch to createthe arc! Help preserve the lifespan of your tungsten's tip by using HF, as it avoids contaminating the weld, but also the tungsten itself. Running off a 15A input plug, this single phase 230V TIG workhorse also boasts Power Factor Correction (PFC)providing greater power efficiencies and more stable operation especially when using extension leads.

Get the perfect TIG welds you need using one of the 11 in-built Arc Wave settings to give you even more control over your job. Select from the following AC Arc Wave forms:Square, Sine, Triangle, Square-Sine, Square-Triangle, Sine Square, Sine Triangle, Triangle Square, Triangle Sine, Trapezoidal, Soft Square. You also have the flexibility to run the unit with the help of “AUTOSET”guiding you through each step to get welding, from Plate Thicknessselection to choosing your Joint Type:Butt, Lap, Fillet and Corner –it couldn’t be easier! If you know what you want, take full control of the machine through its Manual mode and run the unit your way! Combining STICK and TIG, allows to increase your productivity: run TIG root passes and finish with STICK. Thanks to the higher deposition rates of STICK, achieve greater speed without compromising penetration.

STICK with PULSE The BlueVenom XF210 AC/DC TIG continues its value packed offer by including Stick as well as Stick with Pulseproducing cleaner welds with less spatter due to better arc and heat control –better for vertical or overhead welds (over standard Stick). Stick also enables the user to weld where TIG is not feasible ie: outdoors, no gas availability, remote access, dirtier materials or where a more economical option is required.

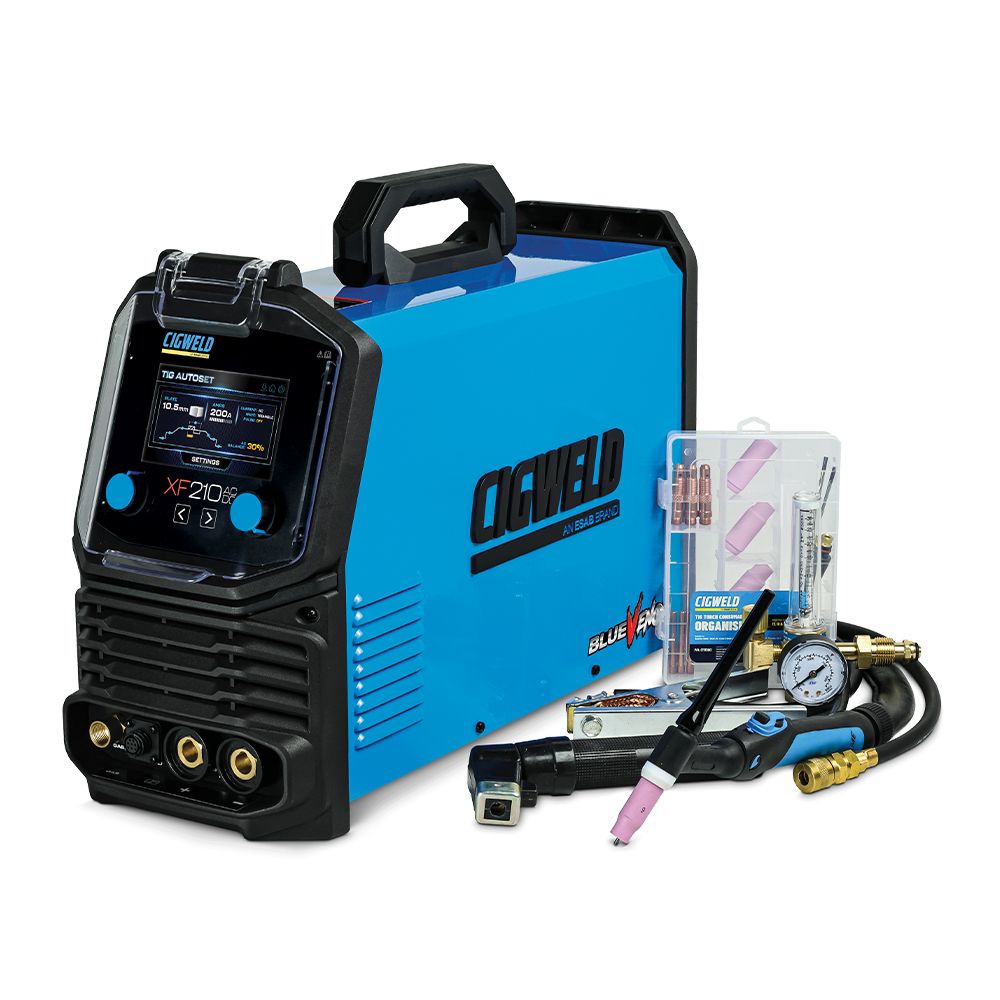

Includes:

1 x BlueVenom XF210 AC/DC Power Source
1 x 4m Flame Series WP26F Flex Head
1 x TIG Torchwith Current Control and On/Off Button
1 x TIG Consumables Kit
1 x 200A Twist lock Electrode Holder with 4m Lead
1 x 3m Quick Connect Gas Hose
1 x 300A Earth Clamp with 3m Lead
1 x BlueJetRegulator/Flowmeter
1 x Operating Manual
Features:

Memory: With 60x Memoryprovisions you will be able to save and load job parameters on the fly to suit the job at hand
Intuitive Display: Powered by a 5” Full ColourLCDdisplay that has been optimised for ease of navigation so you can spend more time welding and less time searching for settings
AC/DC TIG Capability: Suitable for welding aluminium, stainless steel, and mild steel
High Frequency (HF) Start: Non-contact arc ignition for cleaner starts and longer tungsten life
Synergic Welding Control: Pre-set parameters based on plate thickness for fast setup
Plate Thickness Selection: Simplifies setup for consistent weld quality
AC Balance Control: Adjust cleaning vs penetration when welding aluminium
AC Frequency Control: Fine-tune arc focus and stability for different applications
Pre-Flow & Post-Flow Gas Control: Protects weld pool and tungsten before and after welding
Up-Slope & Down-Slope Control: Smooth arc start and finish to prevent defects
Pulse TIG Function: Better heat control for thin materials and precision work
Adjustable Pulse Parameters: Control pulse frequency, peak current, and background current
2T / 4T Trigger Modes: Improved comfort for long welds and better torch control
Remote Control Compatibility: Supports torch-mounted current control
Stick Welding Capability: Ideal for outdoor, dirty, or wind-affected environments
Pulse Stick Mode: Improved arc stability with reduced spatter
Hot Start (Stick): Easier arc ignition with less sticking
Arc Force Control (Stick): Maintains stable arc and prevents electrode sticking
Anti-Stick Function: Reduces electrode sticking and improves usability
Lift TIG Option: Alternative arc start method when HF is not preferred
Thermal Overload Protection: Protects internal components from overheating
Fan Cooling System: Efficient heat dissipation for longer operation
Compact & Portable Design: Lightweight inverter suitable for site work
IP23S Protection Rating: مقاistant to light rain and outdoor conditions
Energy Efficient Inverter Technology: Reduced power consumption with high output performance
Specifications:

Power Supply (Voltage): Single Phase –15A Plug 230V +/-10%
Australian Standard: AS 60974.1:2020
Nominal Supply Frequency: 50/60Hz
Supply Lead & Plug: 15 Amp
Minimum Generator Required: 8.0kVA (0.8 Power Factorat Max Amps)
Amperage Range:
TIG: 10A –210A
STICK: 40A –185A
TIG Duty Cycle @ 40°:
210A @ 40%, 18.4V
STICK Duty Cycle @ 40°
185A @ 25%, 27.4V
Voltage Reduction Device VRD: Yes on Stick Mode (<35V)
Protection Class: IP23S
Dimensions (L x W x H): 555mm x 210mm x 370mm
Weight:
Welder: 17.2kg
Package: 27.2kg
Warranty:

3 Year Warranty Covered by Cigweld

Minimum Sell Quantity: 1 EACH
Order Quantity Multiple: 1 EACH

The images shown are for illustration purposes only and may not be an exact representation of the product.
