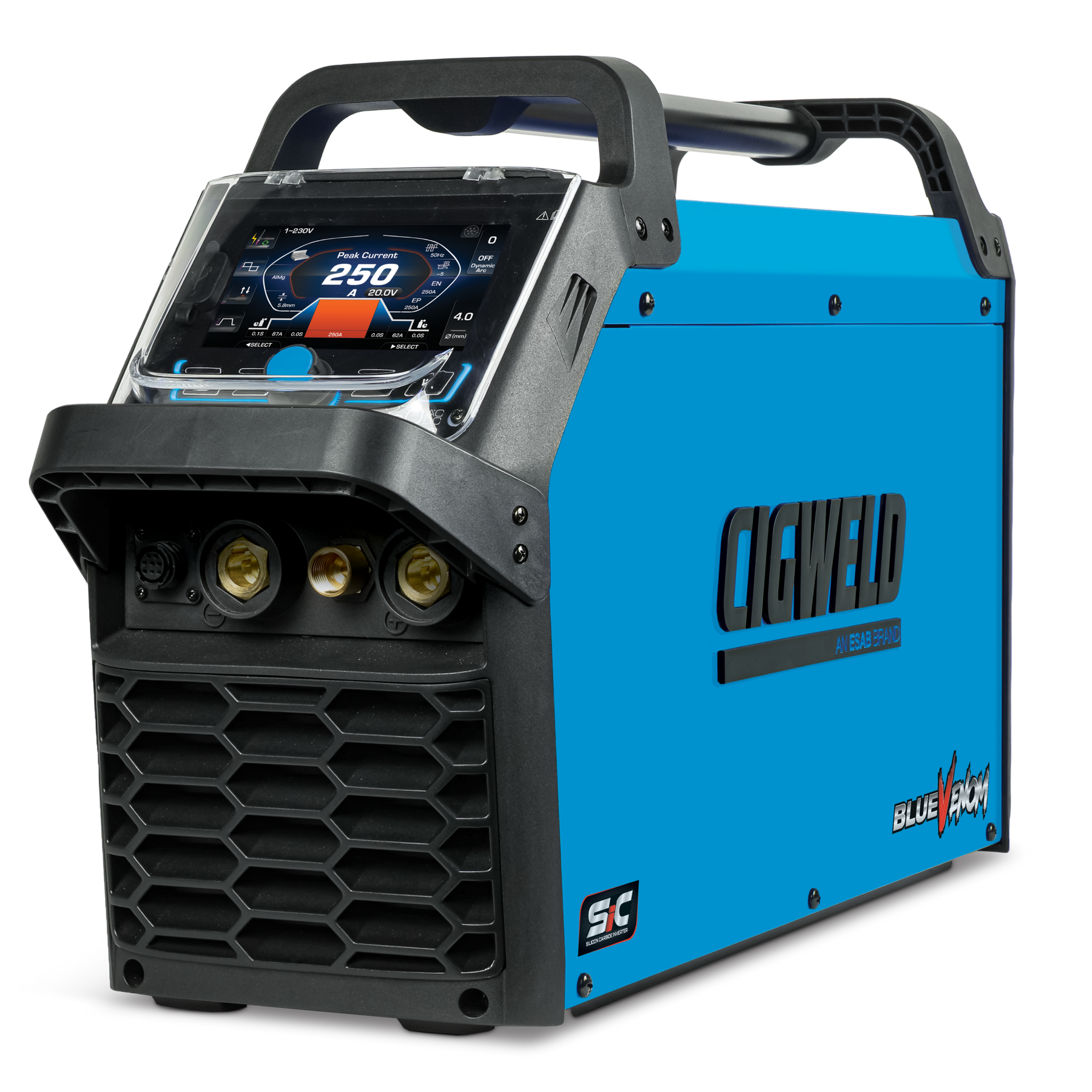

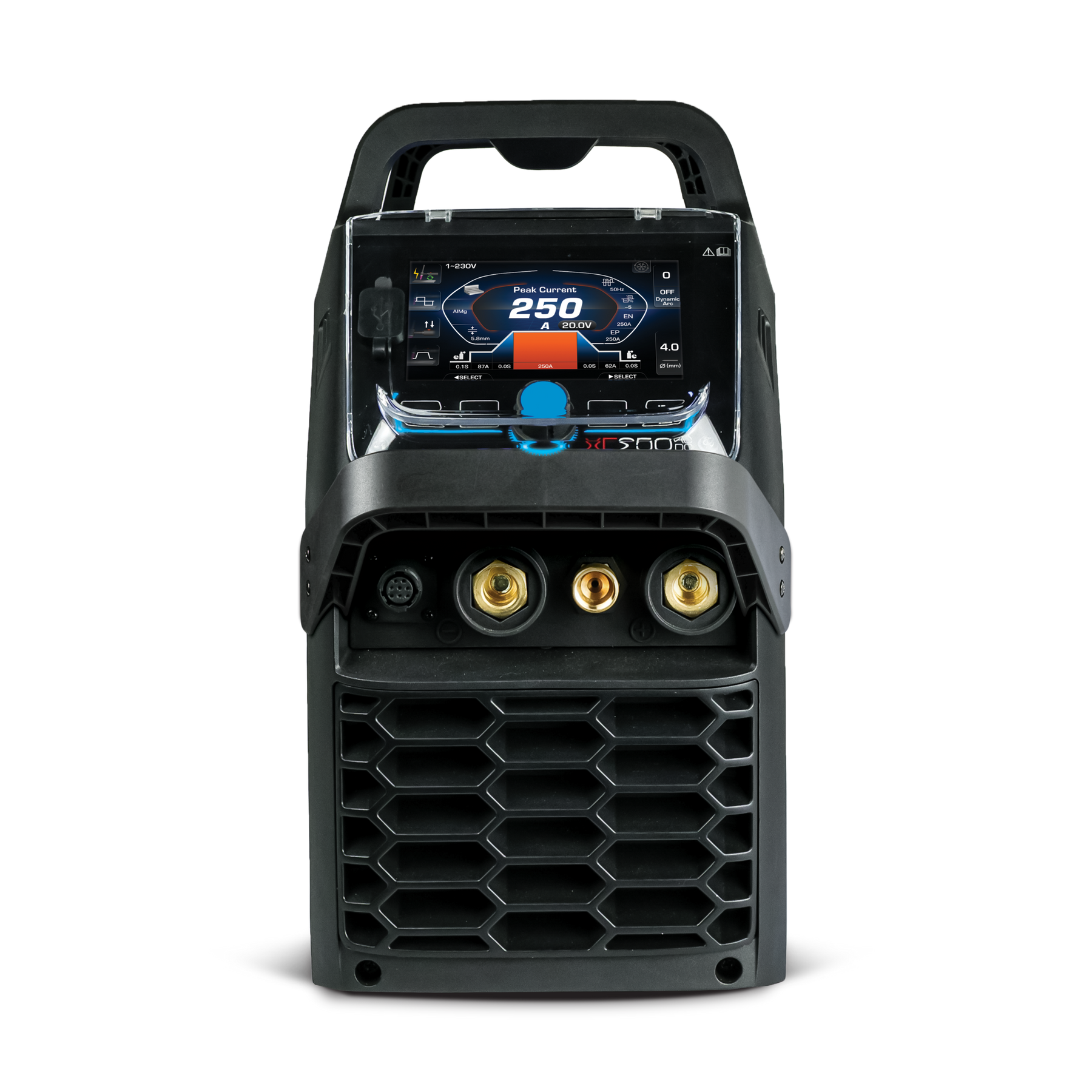

BlueVenom XF250 AC/DC SIC

Brochure

The BlueVenom XF250 AC/DC SiC is a compact, high-performance TIG inverter engineered for welders who demand precision, versatility, and flawless results. Powered by advanced Silicon Carbide (SiC) inverter technology, it delivers exceptional arc stability, thermal efficiency, and welding performance across a wide range of applications.

Featuring AC TIG, DC TIG, multiple AC waveforms, High Frequency Start, synergic controls, and a 5-inch full colour touchscreen, the XF250 AC/DC SiC provides the flexibility and control required to produce showcase-quality welds on aluminium, mild steel, and stainless steel. Designed to maximise efficiency and reliability, it combines advanced welding technology with professional-grade output of up to 250 amps in a compact, lightweight 16.8kg platform.

ADVANCED SIC INVERTER TECHNOLOGY
Next-generation Silicon Carbide (SiC) inverter technology delivers superior efficiency, enhanced arc stability, optimised thermal performance, and extended machine life.

250A AC/DC TIG PERFORMANCE
Delivers up to 250A output across AC TIG, DC TIG, and Mixed AC + DC TIG modes, providing the power required for demanding aluminium, mild steel, and stainless steel welding applications.

SILICON CARBIDE (SiC) MOSFET
Advanced SiC semiconductors have a thermal conductivity 3x greater, and power losses 15-25% lower than conventional welders, improving temperature resistance, and increasing power density.

HIGH FREQUENCY START
High Frequency (HF) Start provides clean, non-contact arc ignition, eliminating tungsten contamination and delivering reliable, consistent arc starts for precise TIG welding.

ADVANCED TIG WELDING MODES
Customise your weld with advanced AC frequency, balance control, Pulse TIG, and Cold Weld TIG functions, giving greater control over arc characteristics, heat input, and precision welding results.

15A POWER INPUT
Designed with a 15A plug for increased power availability and reliable welding performance.

INTUITIVE TOUCHSCREEN & SMART CONTROL
The intuitive 5" Full Colour Touchscreen provides quick access to all welding parameters, while synergic controls and 100 memory programs help reduce setup time and deliver repeatable results.

READY FOR PROFESSIONAL ACCESSORIES

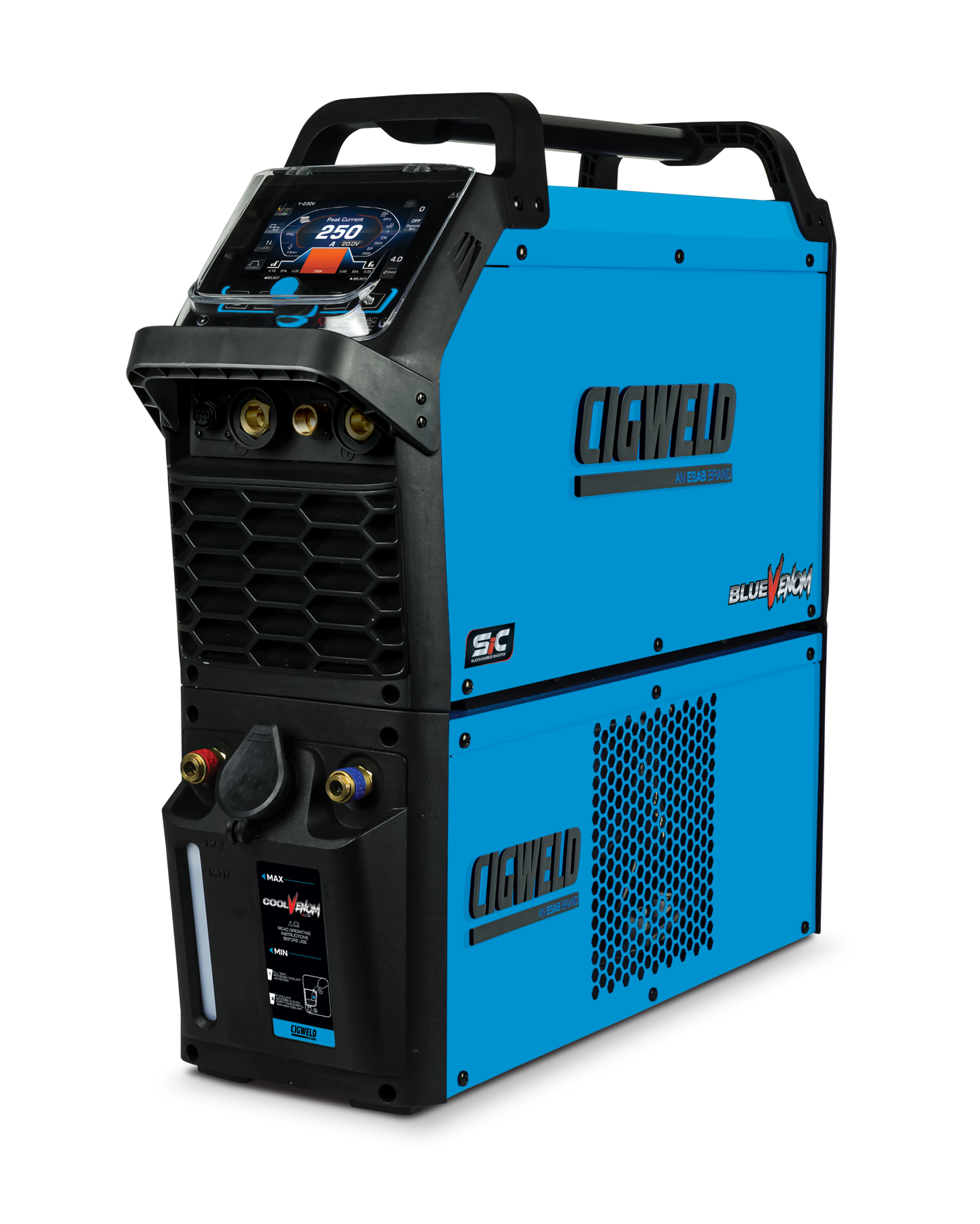

Compatible with water coolers and foot pedals, giving you the flexibility to create the ideal welding setup.
