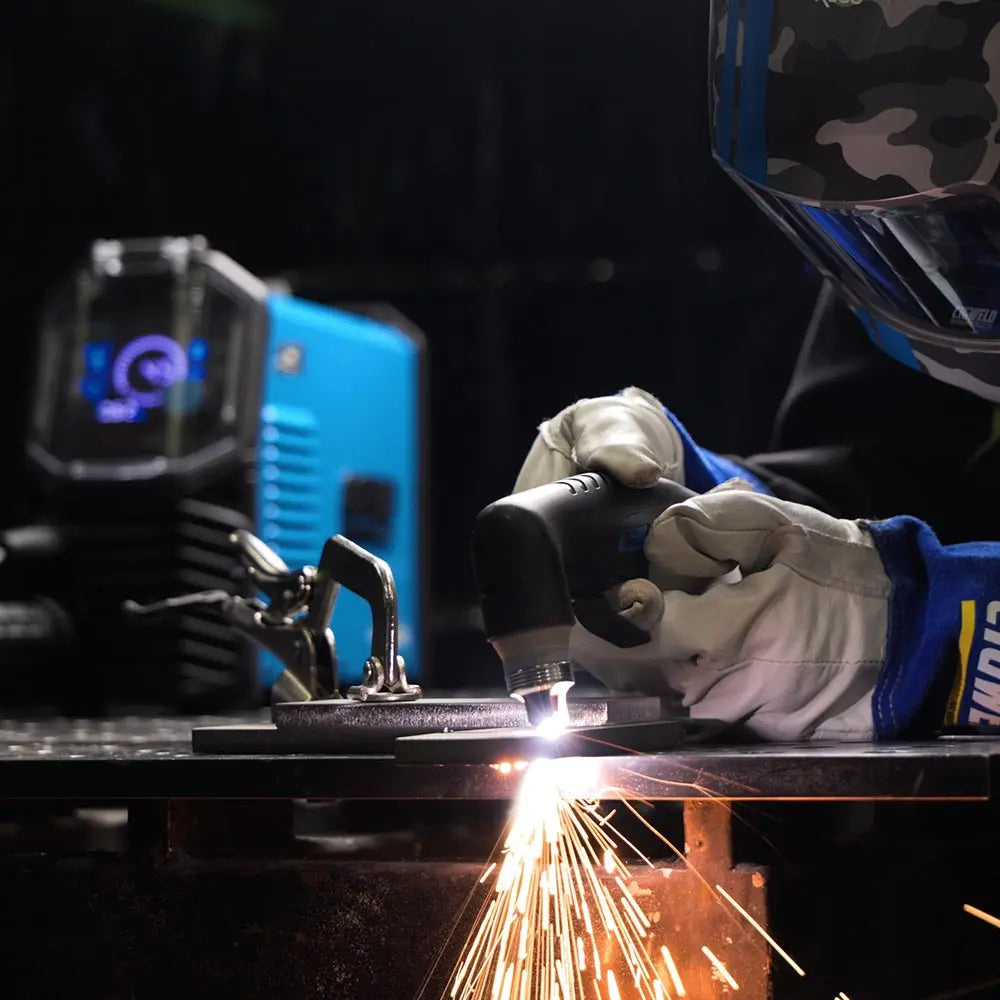

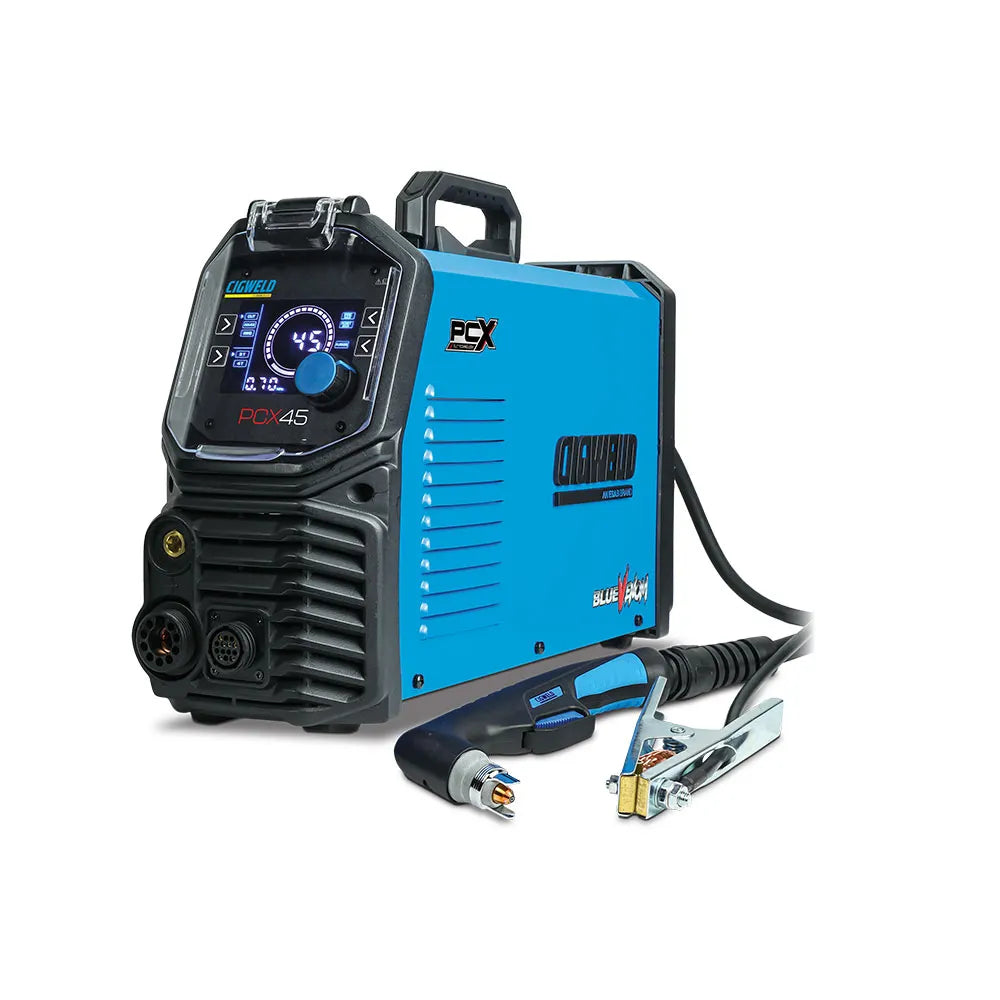

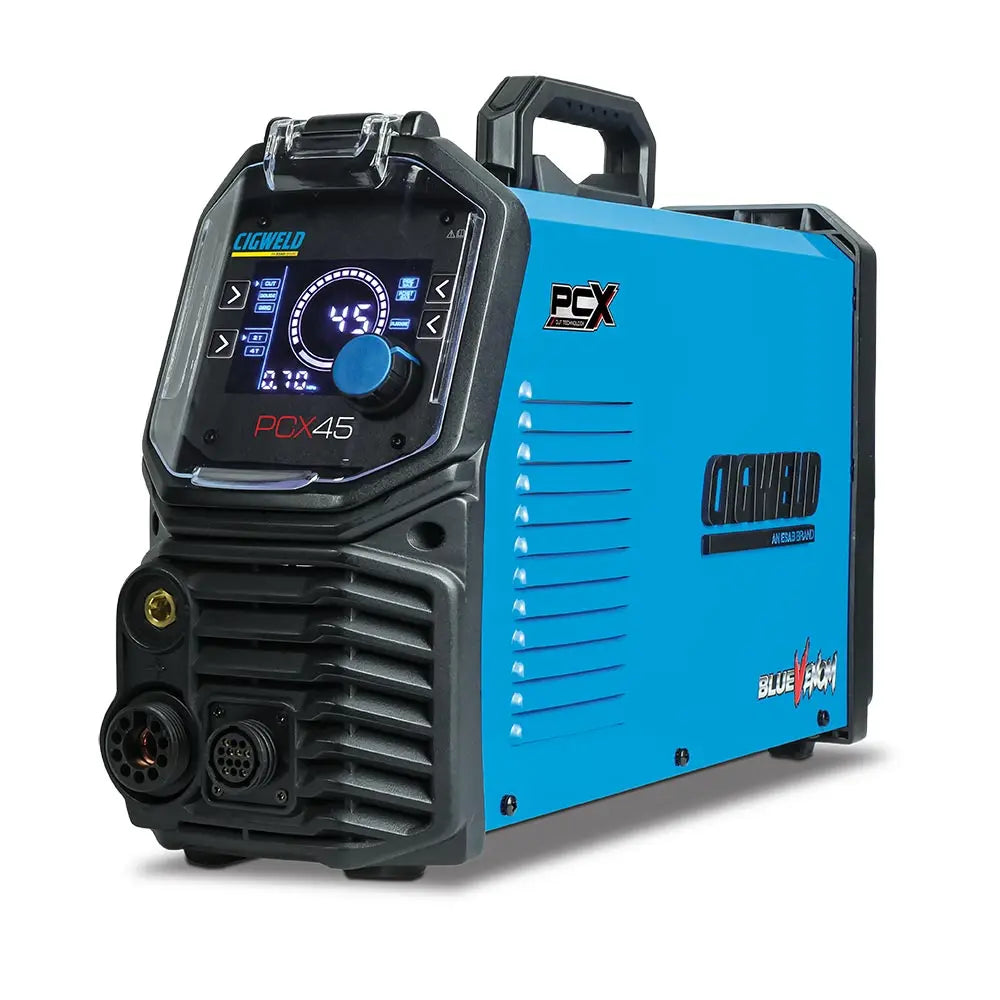

The BlueVenom PCX35 & PCX45 plasma cutters deliver serious cutting power in a compact and portable package. Both models can be used as portable handheld plasma cutters or integrated into CNC cutting systems for automated precision. These machines pack advanced inverter technology with high efficiency and power factor correction for reliable performance. With cutting capacities of up to 12mm (PCX35) and 16mm (PCX45), they’re built for speed, precision, and productivity. Both units feature a lightweight design under 10kg, making them easy to carry on-site or around the workshop without compromising power.
Powered by Hover Start technology for smooth arc striking, and compatible with standard compressed air, the PCX series is engineered for quick setup and accurate results. Whether it’s fabrication, maintenance, automotive, or construction, these machines are built to cut through the tough jobs. The BlueVenom PCX35 & PCX45 give you the flexibility to cut a wide range of materials and thicknesses with confidence. From thin sheet metal to heavy plate, whether you’re working onsite with handheld cutting or automating production on a CNC table, these machines deliver reliability and precision.
- Clean cut thickness: up to 12mm (35A) / 16mm (45A) Severance thickness: up to 16mm(35A)/25mm (45A)
- Lightweight & portable –up to 9.5Kg
- Hover Start arc striking for reliable ignition
- Power Factor Correction
- CNC Ready
- Simple torch connection with ergonomic handle
- Protected to IP21S
- Mild Steel Clean Cut: 16mm
- Mild Steel Severance: 25mm
- Stainless Clean Cut: 12mm
- Aluminium Clean Cut: 12mm
- Power Supply (Voltage):
- Single Phase
- 15A Plug
- 230V +/-15%
- Australian Standard: AS 60974.1:2020
- Nominal Supply Frequency: 50/60Hz
- Supply Lead & Plug: 15 Amp
- Amperage Range: 20A –45A
- Duty Cycle @ 40°: 45A @ 35%, 98.0V
- Input Air Required: 0.38 –0.75 MPa (5.5 –7.5 bar)
- Minimum Generator Required: 7kVA (0.8 Power Factorat Max Amps)
- Weight (Power Source): 9.1kg
- Dimensions (Power Source): 483(L) x 147(W) x 292(H)mm
