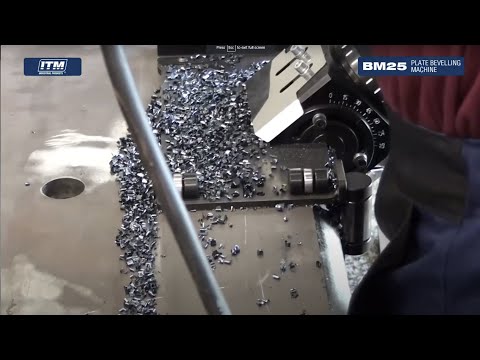

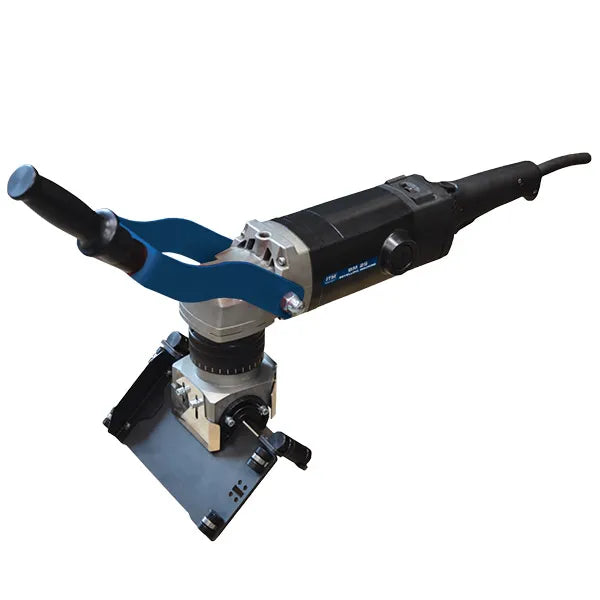

BM25 PORTABLE BEVELLING MACHINE WA-BM25

The BM25 is an easy to use, portable heavy-duty machine designed for bevelling steel plates prior to welding. The beveller is equipped with powerful motor and fitted with face milling bevelling head, allowing smooth operation and exceptional efficiency.

BM25 enables milling straight edges up to 25mm bevel width, whereas variable spindle speed facilitates optimizing cutting conditions. Continuously adjustable milling depth and bevel angle between 0° and 90° require no tooling to change. BM25 has got a state-of-the-art electronic motor overload module protecting the operator, the machine and the tooling.

The beveller is equipped with guide rollers, which make it easy and light to operate.

Comfort and ergonomics of work
Continuously adjustable bevel angle between 0 and 90 degrees
Single head operates with face milling method
Maximum 25mm bevel width (more than one pass could be required)
Continuous bevel width adjustment
Powerful electric motor
Milling head is equipped with 5 pcs of 2-sided indexable cutting inserts
Electronic speed control between 1800-5850 rpm
Overload protection

• Voltage: 1~ 220 - 240 V, 50 - 60 Hz
• Power: 2200W
• Spindle Speed (Without Load): 1800 - 5850rpm
• Maximum Bevel Width (b, Fig. 1): 25mm (1")
• Maximum Depth Of Cut (d, Fig. 1): 12.5mm (1/2")
• Bevel Angle (B, Fig. 1): 0° - 90°, 15° - 75° (Recommended)
• Minimum Workpiece Thickness: 2mm
• Weight: 12.5kg
