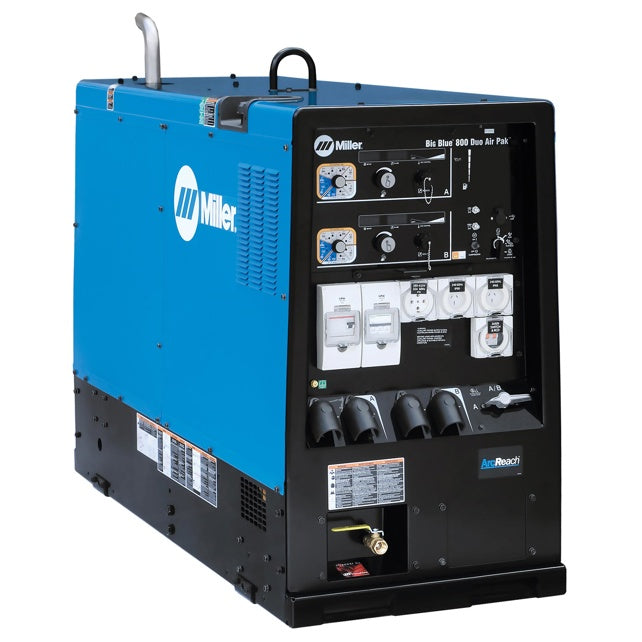

Big Blue 800X Duo Air Pak with ArcReach

The Most Powerful Diesel Generator in the Industry

Our most powerful Air Pak offers dual-operator productivity and multiprocess flexibility. When paired with an ArcReach® wire feeder the Big Blue 800X Duo Air Pak offers the full benefits of ArcReach® technology allowing the welder operator to weld more in less time, improve job-site safety and boost productivity.

Processes: Submerged Arc SAW, Stud Welding 13mm, Stick SMAW, RMD, Pulsed MIG, MIG GMAW, Flux-Cored FCAW, DC TIG GTAW, Air Carbon Arc CAC-A 13mm

GAME-CHANGING TECHNOLOGIES CAN STOP YOU FROM WASTING HOURS EVERY DAY.

ArcReach welding technology minimises the non-value added time spent walking to and from the power source and maximises arc-on time, weld quality and job site safety.

More Power
800 Amps of weld power and 27,000 watts of peak generator power.

Multi-Arc Welding
One dependable engine - two independent arcs with up to 400 Amps each. Or plug in an additional inverter for a true multi operator work platform!

Example: Two additional XMT multi-process machines equals 4 operators, up to 200 Amps
each. Premium quality arcs allow operators to work independently with no arc interaction. Multi operator welding has never been easier or more versatile

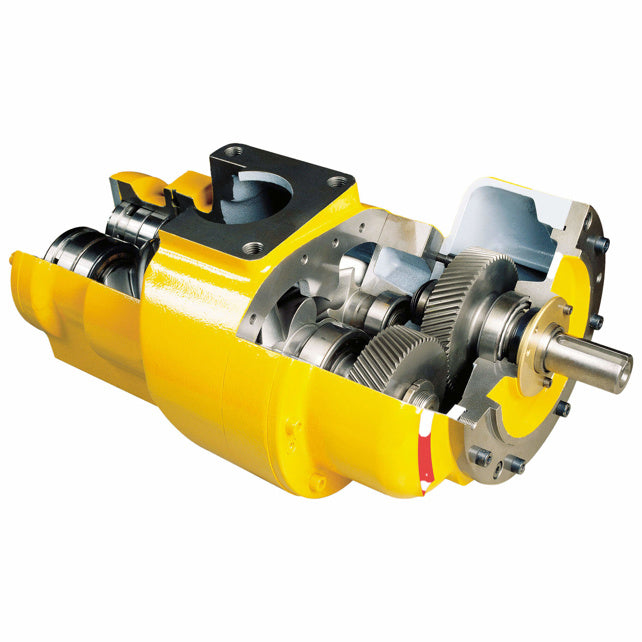

Ingersoll Rand
  • Ultra-reliable industrial rotary screw compressor.
  • 30,000 hrs life expectancy
  • Independent on/off control for applications not requiring compressed air allows greater fuel savings and longer compressor service intervals

Auto Remote Sense™
Standard 14-pin receptacle. For simple connection of remote controls and wire feeders.

HD Powder Coat
With Zinc-rich primer protects sheet metal from rust and corrosion.

                                                                                                                                                              Increased Efficiency

  • More arcs and better fuel economy equal increased profits for your business
  • Estimated savings are 34% with a dual-operator unit versus two single operator units

Digital Meters

SunVision technology enables welding parameters to be viewed with greater clarity than analogue meters at virtually any angle. Meters can be seen clearly even in direct sunlight.

Industrial USB port

Quickly upload the latest software and download machine log files to retrieve in-depth information such as diagnostic and machine statistics.

Auxiliary Power:

  • 1 x 415-380V 32 Amp socket
  • 2 x 240V 15 Amp sockets
  • RCD

Plenty of Auxiliary power for operating onsite equipment at the job, or an extra welding machine e.g. XMT 350

Arc Control

Beneficial when welding with stick and solid wires for easier fine tuning of tough-to-weld materials and out-of-position applications.

Simple Paralleling Switch

Makes switching from a single operator to dual operators a breeze. Weld up to 400 Amps per
side when set up in dual-operator mode, or up to 800 Amps in single-operator mode.

20,000 Watts of pure generator power

Plug in an extra Miller inverter-based power source for a second welding arc.

HEAVY-DUTY LOW SPEED
T4i INDUSTRIAL DIESEL
ENGINES
STANDARD FEATURES
– ArcReach®.
– Digital preset weld meters.
– Automatic idle.
–Vandalism lockout.

Model Options Part NO.
Standard Machine Package - Dual VRD MR907763-1

Basic Upgrade Package - Dual VRD, Emergency Stop, Double Pole Battery Isolator & Lockout Device



MR907763-2

Full Upgrade Package - Dual VRD, Roll Frame & Spill Tray Assembly, Emergency Stop, Double Pole Battery Isolator & Lockout Device

MR907763-3



3 YEAR WARRANTY
Welder/generator is warranted by Miller for 3 years, parts and labor. Engine is warranted separately by engine manufacturer.

Minimum Sell Quantity: 1 EACH
Order Quantity Multiple: 1 EACH
