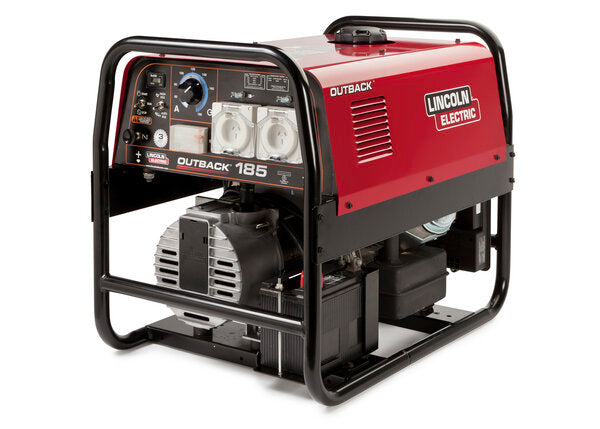

LINCOLN OUTBACK 185 ENGINE DRIVEN WELDER K2706-3

Kohler® Engine, 185A DC Output, 240V Generator

The Lincoln Outback 185 is a rugged, portable engine-driven welder designed for serious stick welding and generator applications in the field. Built with a powerful Kohler® engine and producing up to 185A DC output, it’s the ideal solution for remote welding, repairs, and off-grid job sites.

With a 25.7L fuel tank, integrated Low-Lift™ grab bars, and 5,200W continuous AC power, this machine doubles as a dependable generator. Weld with up to 4.0mm electrodes, or plug in Lincoln’s POWER MIG® 180C or Tomahawk® 30K for expanded MIG and plasma cutting capabilities.

✅ Key Features
Welding Output: 50–185A DC (Stick)
Auxiliary Output: 240V AC, 5,700W peak / 5,200W continuous
Welding Processes: Stick (SMAW)
Engine: Kohler® 14 HP @ 3600 RPM
Fuel Tank Capacity: 25.7L (6.8 gal)
Frame: Rugged 32mm diameter tube frame

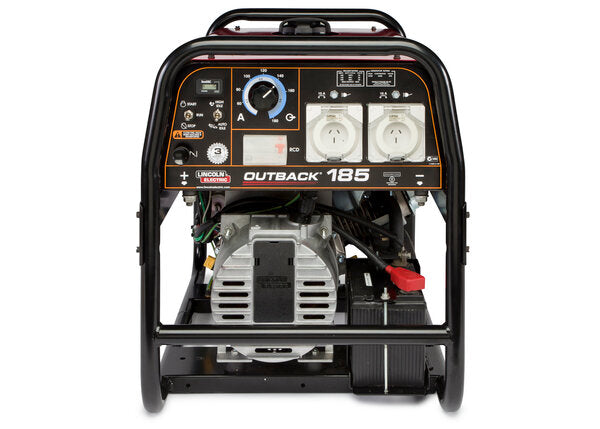

Controls: All front-mounted, including electric start and choke
Electrode Compatibility: Up to 4.0mm
Dimensions (L x W x H): 800 x 553 x 651mm
Weight: 125kg

🎯 Generator Use Cases
✔ Run grinders, pumps, lights, and small motors✔ Emergency or field power backup✔ Plug in Lincoln POWER MIG® 180C for gas or gasless MIG welding✔ Connect Lincoln Tomahawk® 30K for plasma cutting (aluminium, steel, stainless)

🛠 Applications
Farm and field welding
Workshop backup
General fabrication
Maintenance and repair
Remote power and welding supply

💡 Advantages
Large fuel tank for extended runtime
Low-Lift™ handles for easy loading/unloading
Plug-and-play compatible with additional Lincoln equipment
Easy start and operation from front panel
Sturdy frame for added protection in tough conditions

⚠ Usage Notes
Use with up to 4.0mm stick electrodes
Keep machine level when operating to ensure accurate fuel readings
Engine warranty provided separately by Kohler®
