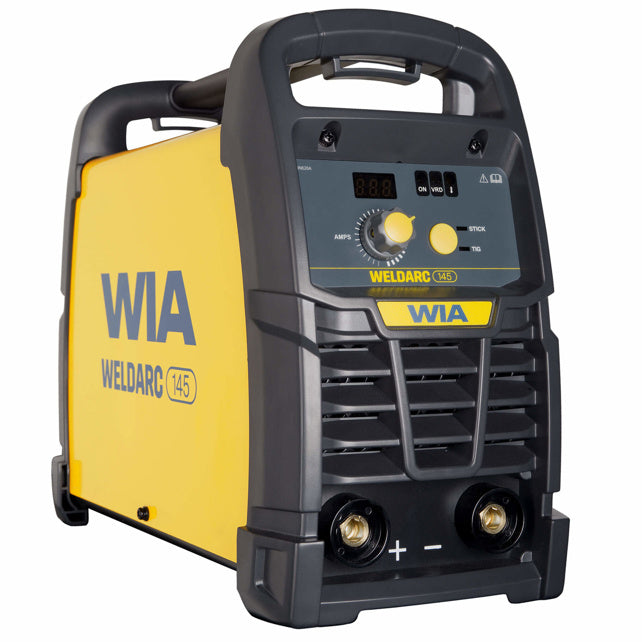

Weldarc 145DC WIA MC111-0

If you’re just starting out or have some welding experience, the Weldarc 145 welder is best for DC Stick and suitable for DC TIG. Best for general maintenance and repair work, this Weldarc 145 is robust, yet lightweight and portable making it easy to pick up and pack up.

The Weldarc 145 features power factor correction for maximum efficiency and an IP23S rating, providing extra protection for harsh environments. Built with quality components and manufactured to deliver, the Weldarc 145 comes with 3 years warranty.

Product Manual

Spec Sheet

Brochure

Features

— 145 A single phase Stick/TIG Welder
— 145 A at 25.8 V 20% Duty Cycle
— Portable – Only 7kg
— DC Lift Arc TIG Start – For smoother
starting without sticking to the workpiece.
— Digital Meters – Easy to read and easy to
adjust parameters
— Power Factor Correction – Smooths out
the actual input current. Maximises
efficiency when welding on long leads or
from generators
— Built-In Thermal Protection – Prevents the
machine from operating beyond its safe
thermal zone
— Fan-on-Demand™ Cooling Fan – Reduces
noise, energy use and contaminates
— Arc Force – Provides a more stable arc and
prevents electrode sticking
— Hot Start – For better, easier arc starting
— VRD (Voltage Reduction Device)
— IP23S rated – Provides extra protection in
harsh environments
— Generator compatible – 4.6 kVa Peak*

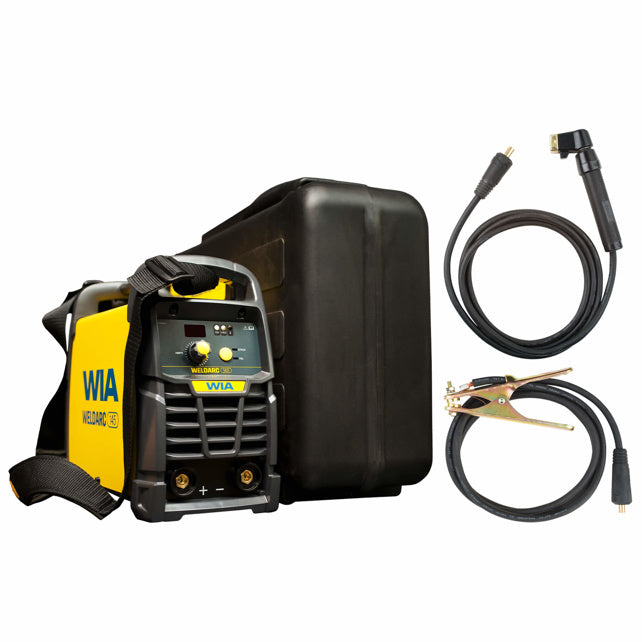

Best used with:

Produce	Part Number
Foot Control	AA76
TIG Torch	TIG002
Austarc 16TC Low Hydrogen Electrode	16TC25 16TC32 16TC40
Austarc 12P General Purpose Electrode	12P25 12P32 12P40
WIA OpticFX Helmet	SH300001 (NERO) SH300002 (BLUE KNIGHT)

Minimum Sell Quantity: 1 EACH
Order Quantity Multiple: 1 EACH

The images shown are for illustration purposes only and may not be an exact representation of the product.
